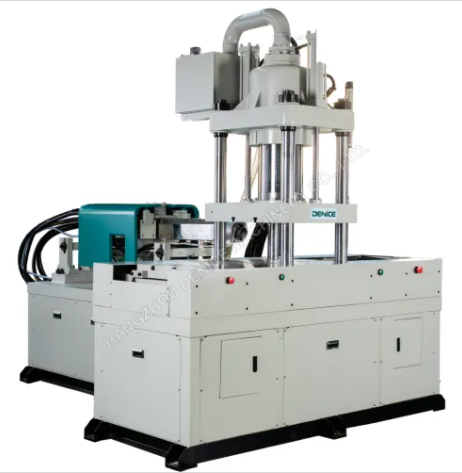

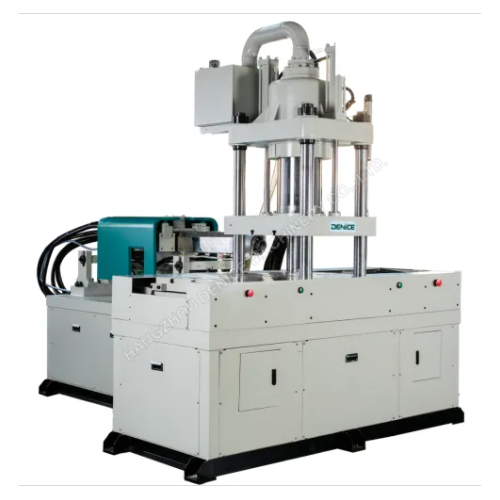

BMC injection molding machine DK-1600DS

The BMC Injection Molding Machine is a high-performance machine designed for processing bulk molding compounds (BMC). It features a compact design, fast cycle times, and high precision controls for producing high-quality parts.

Product Description

BMC Injection Molding Machine

The BMC Injection Molding Machine is a high-performance machine designed for processing bulk molding compounds (BMC). It features a compact design, fast cycle times, and high precision controls for producing high-quality parts. The machine is easy to operate and maintain, with a user-friendly interface and advanced diagnostics to minimize downtime.



It also has a wide range of clamping force options, making it suitable for a variety of applications. With its high efficiency and versatility, the BMC Injection Molding Machine is an ideal choice for manufacturers looking to improve their production processes. If you have any question on BMC injection molding machine, contact us soon!



Specification

Specification

Model

Unit

DK-1600DS







Injection Unit

Screw diameter

mm

Ф45

Ф50

Ф55

Maximum injection pressure

Kg/cm2

2291

1856

1534

Theoretical shot volume

cm3

381

471

570

Maximum shot weight(PS)

g/Oz

340(11.9)

420(14.8)

509(17.9)

Injection rate

cm3/sec

127

157

190

















Clamping Unit

Clamping force

ton

160

Sliding Table size

mm

440 × 1400

Sliding Table Stroke

mm

700

Tie bar distance

mm

460× 600

Minimum mold thickness

mm

250(customization)

Opening stroke

mm

350

Open daylight

mm

600(customization)

Nozzle Center Height

mm

175±20

Nozzle Center Distance

mm

125

Ejector force

T

4.0(customization)

Ejector stroke

mm

100









Others

Pump motor power

Kw

18.5

Hydraulic system pressure

Kg/cm2

140

Barrel heating power

Kw

10.7

Total wattage

Kw

29.2

Oiltank capacity

L

500

Machine weight (approx.)

T

9

Machine dimensions(approx.)

m

3.7×2.7× 3.0



Advantages

BMC (Bulk Molding Compound) injection molding machines have several advantages over traditional thermoplastic injection molding machines. These include:

1. Higher dimensional stability: BMC has a higher glass transition temperature than thermoplastics, which means it maintains its shape better under high temperatures and loads.

2. Better chemical resistance: BMC is resistant to a wide range of chemicals and is not affected by UV light, making it suitable for outdoor applications.

3. Improved flame retardancy: BMC has excellent flame retardant properties and can be used in the production of products that require a fire resistance rating.

4. Low shrinkage: BMC has low shrinkage, which means that it maintains its shape and size after cooling, resulting in less warping and cracking.

5. High strength and stiffness: BMC has high strength and stiffness, which makes it ideal for applications that require strength and rigidity.

6. Easy coloring: BMC is easy to color, and it can be colored during the molding process to match the desired end product.

7. Versatility: BMC can be used in a wide range of applications, including electrical components, automotive parts, and consumer goods.



Features

BMC (Bulk Molding Compound) injection molding machines have several features that make them well-suited for the production of BMC parts:

1. Heating and Cooling System:

BMC injection molding machines have a heating and cooling system that is designed to maintain the temperature of the mold at a consistent level, which ensures that the BMC is properly cured and that the final product has consistent dimensions.

2. High-Pressure Injection System:

BMC injection molding machines use a high-pressure injection system that allows for precise control of the injection rate, which ensures that the BMC is evenly distributed throughout the mold.

3. Auto-Deairing System:

BMC injection molding machines typically have an auto-deairing system that removes any trapped air from the BMC before it is injected into the mold, which helps to reduce the risk of defects in the final product.

4. Dual-stage Injection:

BMC injection molding machines have dual-stage injection system which allows for the injection of a low viscosity resin into the mold first, which fills the mold and then a high viscosity resin is injected to provide the desired surface finish.

5. Automatic Temperature Control:

BMC injection molding machines have automatic temperature control systems that monitor and adjust the temperature of the mold, which ensures that the BMC is properly cured and that the final product has consistent dimensions.

6. Safety Features:

BMC injection molding machines have safety features such as emergency stop buttons, machine guards, and interlocks to ensure the safety of the operator during the molding process.



Application

BMC injection molding machines have a wide range of applications in various industries. Some of the common applications include:

1. Electrical Industry: BMC is used to produce electrical components such as switchgear, control panels, and transformer parts.

2. Automotive Industry: BMC is used to produce parts for cars, trucks, and other vehicles such as mirrors, door handles, and dashboards.

3. Household Industry: BMC is used to produce a wide range of household items such as kitchenware, bathroom fixtures, and furniture.

4. Medical Industry: BMC is used to produce medical equipment such as surgical instruments and dental implants.

5. Industrial Industry: BMC is used to produce parts for industrial machinery such as gears, bearings, and pump parts.

6. Telecommunication Industry: BMC is used to produce parts for telecommunication equipment such as telephone handsets, routers and other telecom components.

BMC injection molding machines are known for their high precision and ability to produce complex shapes, making them suitable for applications requiring precise and intricate parts.



Unleashing the Power of the DK-1600DS1

1. Superior Performance and Speed

The DK-1600DS1 is an exceptional piece of engineering, meticulously crafted to deliver unprecedented performance and speed. Equipped with cutting-edge processors and advanced circuitry, this device is designed to effortlessly handle the most demanding tasks with lightning-fast precision. Whether you're engaging in complex data analysis, resource-intensive simulations, or immersive gaming, the DK-1600DS1 outshines its competitors, providing a seamless and lag-free experience.

2. Unrivaled Display Quality

Feast your eyes on the mesmerizing visuals produced by the DK-1600DS1's state-of-the-art display technology. Its high-resolution screen, coupled with vibrant colors and exceptional contrast, transports you into a world of breathtaking clarity. Whether you're engrossed in graphic design, multimedia editing, or simply enjoying your favorite movies, the DK-1600DS1's display guarantees a truly immersive and captivating visual experience.

3. Enhanced Connectivity and Versatility

The DK-1600DS1 is engineered to seamlessly connect and adapt to the modern technological landscape. With an array of versatile ports and interfaces, this device allows you to effortlessly integrate it into your existing setup. Whether you need to connect multiple external devices, transfer data at lightning speeds, or sync with cloud-based services, the DK-1600DS1 empowers you with unparalleled connectivity options, ensuring you stay at the forefront of technological advancements.

4. Uncompromising Security Features

At Denice Tech, we prioritize your privacy and data security. The DK-1600DS1 is fortified with advanced security features that safeguard your valuable information from potential threats. With robust encryption protocols, biometric authentication, and intelligent threat detection mechanisms, you can rest assured that your sensitive data remains secure and protected at all times.



The DK-1600DS1: Revolutionizing Industries

1. Transforming the Gaming Landscape

The DK-1600DS1 has emerged as a game-changer in the world of gaming, elevating the entire experience to new heights. Its powerful hardware, coupled with innovative software optimizations, ensures smooth gameplay and realistic graphics that immerse you in virtual worlds like never before. Experience the thrill of competitive gaming or lose yourself in richly detailed open-world adventures with the DK-1600DS1 as your ultimate gaming companion.

2. Empowering Creativity and Productivity

Unlock your creative potential and boost productivity with the DK-1600DS1. Whether you're a digital artist, video editor, or music producer, this versatile device provides the necessary tools to bring your vision to life. With its exceptional processing power, expansive storage capacity, and intuitive software integration, the DK-1600DS1 streamlines your workflow, enabling you to unleash your creativity and achieve remarkable results.

3. Revolutionizing Research and Analysis

Researchers, scientists, and analysts can now embrace the DK-1600DS1 as an invaluable tool in their pursuit of knowledge and innovation. Its immense computational capabilities and optimized algorithms empower professionals to tackle complex simulations, perform intricate data analysis, and drive groundbreaking discoveries. With the DK-1600DS1 as your trusted research companion, unlock new frontiers in your field and make significant contributions to your domain.



We Are your Most Trusted vertical Injection Moulding Machine Supplier!

As a professional vertical injection moulding machine supplier, Hangzhou DENICE Machinery Co., Ltd. is the one of professional vertical injection moulding machine manufacturers in China. We mainly provide Vertical Injection Molding Machine to our customers. We hope to conduct more comprehensive business with customers from different countries in the future. We can help you succeed with competitive pricing and high-quality products.



BMC Injection Molding Machine - High Quality and Efficient Solution for BMC Moulding

Hangzhou DENICE Machinery Co., Ltd. is proud to offer its customers the BMC injection molding machine series. BMC, or Bulk Molding Compound, is a thermoset material that is widely used in a variety of industries, including automotive, electrical, and aerospace. Our BMC injection molding machines are designed to provide customers with a reliable, high-quality, and efficient solution for their BMC moulding needs.



Our BMC injection molding machine series features a range of clamping forces from 15 tons to 650 tons, with injection volumes ranging from 35 grams to 8000 grams. The machines are designed to provide customers with high-precision moulding capabilities, ensuring that every product is of the highest quality and accuracy.



Our BMC injection molding machines are specially designed to handle the unique properties of BMC material, including its low viscosity, high flow, and high filler content. The machines are equipped with specialized screws and barrels, which are designed to provide consistent and accurate material flow, ensuring that every part is produced to the exact specifications required.



Our BMC injection molding machines are also equipped with advanced control systems, which allow customers to easily adjust and fine-tune the machine settings to meet their specific moulding needs. The machines are also designed to provide fast cycle times, which can help to improve productivity and reduce costs.



At Hangzhou DENICE, we understand that every customer has unique requirements and needs. That's why we offer a range of BMC injection molding machines with industry characteristics, including special machines for golf, high-speed & high-pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid Silicon Rubber plastic injection machines (LSR), bi-color (multicolor) injection molding machines, and APC series full automatic belt molding machines. Our machines are designed to meet the diverse needs of our customers and provide them with the perfect solution for their BMC moulding needs.



In conclusion, if you are looking to buy a vertical injection molding machine for BMC injection moulding, Hangzhou DENICE Machinery Co., Ltd. has the perfect solution for you. Our BMC injection molding machine series is designed to provide customers with a reliable, high-quality, and efficient solution for their BMC moulding needs. Contact us today to learn more about our machines and how we can help you improve your production capabilities.



FAQ

1. Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2. Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3. How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4. Do you accept my own design?

We can provide OEM/ODM service

5.When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
