Replacement Screens for Composite Mongoose/Meerkat Shakers From M-I SWACOomposite

Replacement Screens for Composite Mongoose/Meerkat Shakers From M-I SWACOomposite

Product Description

Shale Shaker Screen for Drilling Mud Treatment Application

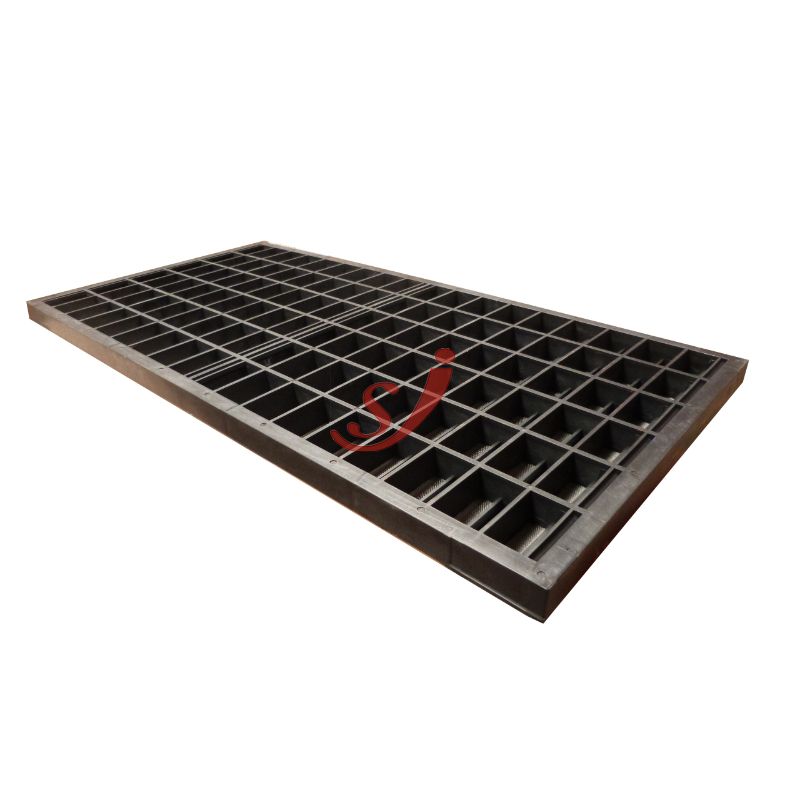

Composite frame shale shaker screen consist of two or three stainless steel mesh layers. Different layers have different density. Arrange these layers appropriately can optimizes the screen's performance. Composite frame shaker screen is widely used to filter out the solid phase and other impurities in drilling mud. The polyurethane material frame structure of this type shale shaker screen ensures the screen's high strength and good abrasive resistance. It also has convenient replacement feature, specialized rubber plug repair system effectively reduces the downtime of the shaker machine.



Mesh Size

API 20 – API 400

Dimension

1165 mm × 585 mm (45.75″ × 23″)

Screen Type

frame Screen

Frame Material

carbon steel / composite material

Wire Mesh Material

SS304 or SS316 as request

Screen Layer

2 or 3 layers

Specifications can be customized according to your needs.



Swaco Shaker Screen Advantage

Specialized rubber plugs repair system.

Good filter fineness; high screening efficiency.

Durable and reliable structure; lower screen replacement cost.

High operational efficiency; good solids control performance.

Good stability; easy to maintain.



Rubber plug repair tips of composite shale shaker screen

Turn the shaker screen over.

Keep the screen on a flat position.

Make the hollow side up.

Put the rubber plug above the damaged cell.

Insert the plug into the cell.

Ensure it cannot be removed.



Shengjia Screens for Composite Mongoose/Meerkat Shakers Application

Filter the mud and other impurities in oil.

Used in solid-liquid separation.

Applied in solid control system.

Used in wedge fastening equipment.



Technical Parameter

Mesh Material: stainless steel 304/316/316 L.

Frame Material: Q235 steel/PT.

Screen Type: XL, XR, HC, MG.

API RP 13C Designation: API 20 – API 325.

Package: packed in paper carton, shipped by wooden case.
