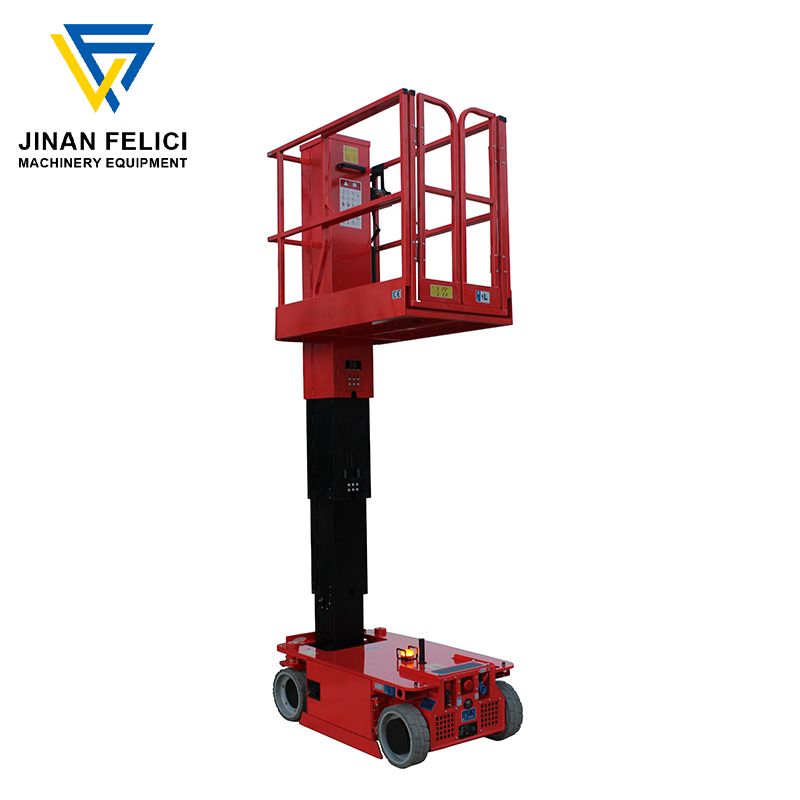

Self Propelled Sleeve Type Aerial Work Platform

Attribute

Working Places: Outdoor

Platform Height: 1-6m(3.28-19.69ft)

Platform Width: 0.66-1m(2.17-2.3ft)

Platform Capacity: 200-500kg(440.92-1102.31lb)

Machine Weight: 500-1100kg(1102.31-2425.08 lb)

Power Type: Electric

Product Description

AMWP series self-propelled elevating work platforms make many difficult and dangerous jobs easier. This aerial lift platform is characterized by its compactness, flexibility and convenience, which Instead of indoor scaffolding and climbing ladders, mobile aerial platform can be used to reach the height you need and solve your problems. Mobile elevated work platform is especially suitable for continuous high-altitude operation in a larger area such as airport terminals, stations, docks, shopping malls, stadiums, community properties and workshops.

Self propelled elevating work platforms features:

1.Safety certification

Comply with the EU EN280 standard and obtain CE certification.

2.Automatic walking

It has the function of automatic walking. Elevating work platform can be in different working conditions, fast, slow walking, which only one person in the aerial work can operate the machine to continuously complete the lifting, forward, backward, turning and other actions. Compared with the traditional hydraulic platform, it greatly improve the efficiency and reduce the number of operators and labor intensity.

3.Steeples variable speed

Only one person can operate it. All the movements are controlled by the operating handle on the workbench and the motor is steeplessly variable speed. It effectively prolong the service life of the battery and motor and the motor only consumes the energy when working.

4.Large angle steering system

Adopt the principle of differential steering and design 0 angle steering system, which makes the machine has excellent flexibility.

5.Intelligent charging system

Equipped with fully automatic charger, it can automatically complete the whole process of charging and will automatically stop charging after the battery is full.

6.Extension platform (This is an optional item)

The working platform can be moved out, which expands the working range and meet the special needs of some users.

7.High standard structure

a)Adopt high-strength custom-made chain,which is 10 times higher than the design standard

b)Built-in slider design, made of ultra-high polymer polyethylene, better stability

c)Take Liaoning "Zhongwang" brand aluminum profile (customized )

8.Power failure self-locking function

Mobile elevating work platforms will be automatically locked at the time of power failure or sudden power failure.

9.Environmental protection

As the Felici mobile elevated platform adopts DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.

10.Emergency device

Equipped with emergency descent system
