QK1330 CNC Pipe Threading Machine

CNC pipe threading machine

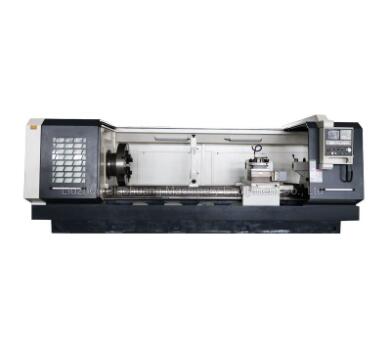

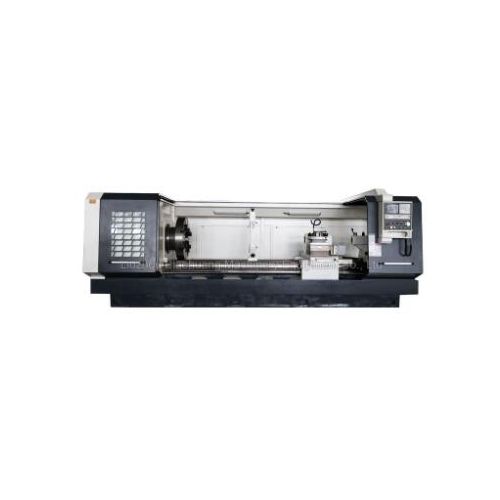

QK1330 CNC Pipe Threading Machine is an efficient, high-precision two coordinate continuous control CNC machine independently researched and developed by our company according to the development needs of petroleum industry. The machine has high power, good rigidity, can cut straight, oblique, arc, male, inch thread, and has a variety of functions such as tip radius compensation. This machine highlights the characteristics of high rigidity and high power, and is a high precision and high efficiency pipe thread machining machine. With the latest innovative design, the pipe can be completed by radial and axial feed of the tool. A variety of applications, such as pipe beveling, facing, edging, deburring, tapering and threading, can be performed on the inside and outside of pipes without changing tools for different angles or shapes.

Product Application

1. The CNC Pipe Threading Lathe can be used for rough machining and finishing machining of mechanical parts, especially suitable for petroleum, mining, machinery and other industries, for high-efficiency, high-volume, high-precision processing of rotary parts.

2. The machine can process steel, cast iron and non-ferrous metals and other materials.

3. The machine is also suitable for small and medium-sized batches of shaft, plate parts of the internal and external cylindrical surface, cone, thread, drilling, reaming and curve turning parts. The machining accuracy is up to IT7 and the surface roughness of the machined workpiece is up to Ra1.6.

The processing range of machine shall be determined according to machine specifications and technical parameters. It is forbidden to process beyond the Biaohuang CNC Pipe Threading Machine specifications and allowable parameters. Otherwise, machine will be damaged and even personal casualties will occur. Machine processing scope refer to machine technical parameters.

Machine performance and characteristics

1. Machine: mechanical and electrical integration design, advanced structure, reasonable layout, beautiful shape, the use of integral bed, good rigidity and stability; Machine automatic lubrication system.

2. Spindle: the spindle bearing adopts P5 grade bearing; Spindle rotation jump ≤0.01mm, stable accuracy.

3. Tool rest: The tool rest adopts Shenyang electric tool rest, the locking force can reach 28KN.

4. Movement: the X/Z axis of the machine adopts ball screw pair produced by Shandong, which has good movement accuracy and dynamic characteristics.

5. System: GSK 980TDI system, cross and longitudinal servo motor drive, reliable performance.

6. Headstock: the variable speed structure of the headstock of this series of machine adopts manual shift.
