Plate Heat Exchanger Sheets Forming Presses

Plate Heat Exchanger Sheets Forming Presses

Product Description

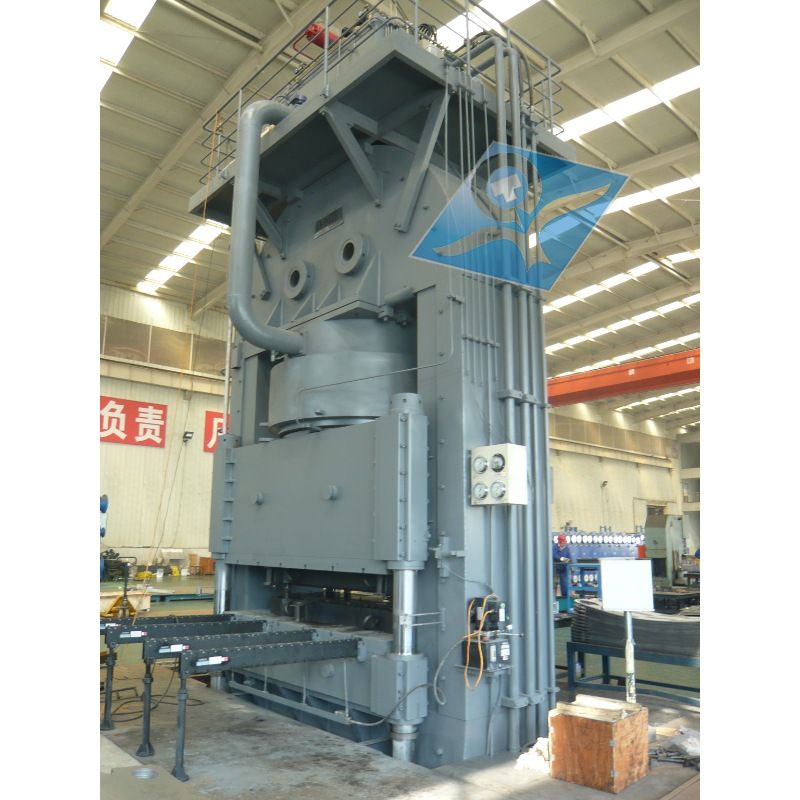

The hydraulic press for PHE plates is primarily used for shaping large sheet metal casings such as titanium, stainless steel, and heat exchanger plates. Metal plates forming press can also be utilized for shaping large cover components. This PHE plates forming machine is designed with a pre-tensioned wire winding structure, ensuring reliable operation, compact size, and light weight. Both working pressure and feed speed of steel press machine are adjustable.

Technical Parameters:

Model

Capacity

(MN)

Working table

(m)

Stroke

(mm)

Maximum daylight

(mm)

Working

speed

(mm/s)

Motor   power

(KW)

TPY30

30

1.5 ×1.0

250

400

0.5—1

17—37

TPY60

60

2.0×1.2

250

400

0.4—0.8

30--55

TPY100

100

2.2×1.3

250

450

0.3—0.6

37—55

TPY200

200

1.5×3.2

250

500

0.3—0.6

75—110

TPY300

300

1.9×3.8

250

550

0.25—0.5

90—150

TPY400

400

2.2×4.5

250

600

0.2—0.4

110—180

PHE plates forming hydraulic press exhibits stable performance, excellent pressure retention, precise delay timing, and a high level of automation.

Features and advantages of PHE plates forming press:

 Frames and cylinders are steel wire winding structure, which ensure high loading capacity and longer service time.

 Reliable and easy-replaced structure of ultra-high pressure cylinder and booster seals.

 Patented prefill valve design speed up oil prefilling and releasing.

 High pressing precision and energy-saving.

 PLC realizes controlling and monitoring of the hydraulic press
