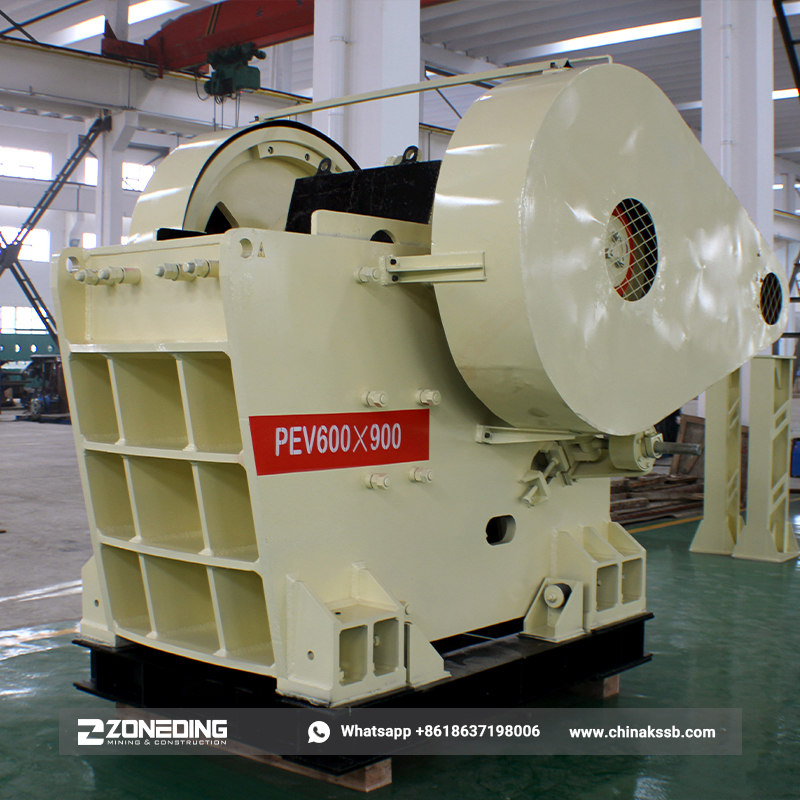

Jaw Crusher

Jaw Crusher

Product Description

Capacity:1-1100t/h

Feeding Size: 125-1200mm

Applicable Materials: Quartz, granite, basalt, marble, calcite, dolomite, limestone, gypsum, pebble, bluestone, feldspar, glass, cement clinker, concrete, coal gangue, construction waste, copper, manganese, gold ore, iron ore, and other ores.

1. Jaw Crusher Application :

Jaw Crusher Applied materials: limestone, pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, coal gangue, construction waste, ferrosilicon, basalt, sandstone, rocks, ore, glass, cement clinker and some metal.

Jaw Crusher Application Field is kind of coarse crusher, mainly used in mining, building materials, infrastructure construction etc. It can crush various materials with compressive strength not exceeding 320MPa.

2. Working Principle of Stone Crusher Plant :

When a jaw crusher works, the motor starts the belt wheel to drive the centrifugal shaft to rotate. The movable jaw blade suspension shaft gets to and away the fixed shaft periodically, which causes a press, rubbing and grinding, etc. to the raw materials. Crushed stone falls down gradually and are discharged out of the jaw crusher when the particle size meets the requirements.

3. All Kinds of Jaw Crusher:

As ideal primary or secondary crusher equipment, jaw crushers with different types are often used in various industries. Depending on different ways of moving or engine, jaw crushers are divided into three types: PE/PEX Motor jaw crusher, Diesel jaw crusher, and Mobile jaw crusher.

Product Features & Advantage

① Deep crushing cavity which improves capacity.
② High crushing ratio and uniform finished production size.
③ Single jaw crusher can save power 15% - 30%
