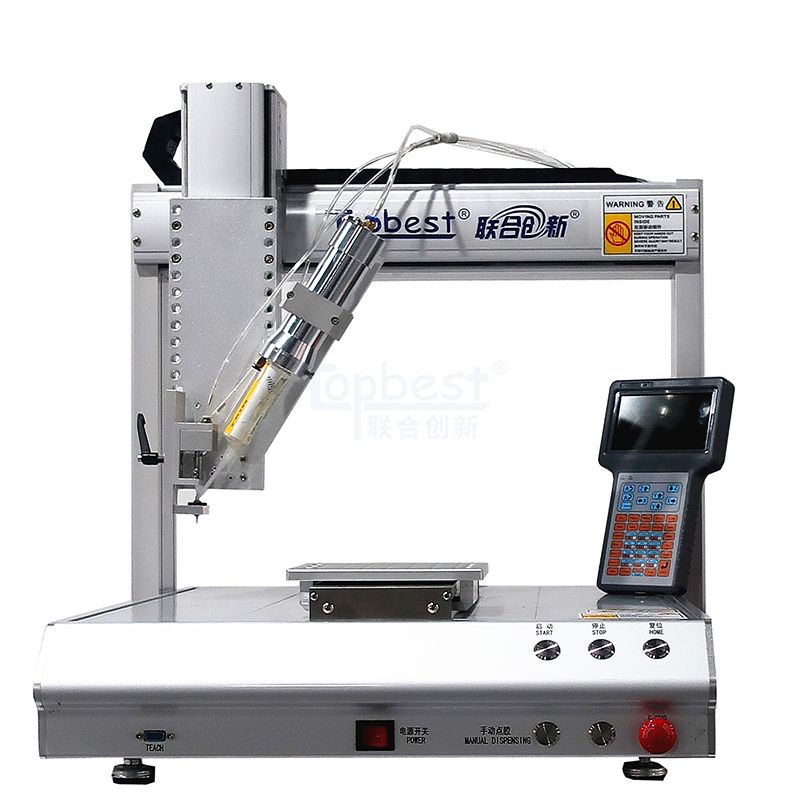

AB Glue Dispensing Machine TBS-TC-441
AB Glue Dispensing Machine
Product Description
Topbest AB glue dispensing machines can automatically mix different ratios of AB glue. These glue dispensing machines are typically equipped with programmable controllers that can automatically adjust the flow rates of the A and B components based on specific mixing ratios and flow requirements, and mix them in the mixing chamber. This ensures that each application receives a consistent and accurate mixing ratio.
AB Glue Dispensing Machine Specification
|
MODEL |
TBS-TC-441 |
TBS-TC-631 |
TBS-TC-6331 |
TBS-TC-6331CM |
|
Dimension（L×W×H mm） |
750X650X750 |
880×650×750 |
880X650X750 |
900×650×1000 |
|
Weight（kg） |
60 |
75 |
75 |
140 |
|
Dispensing range X/Y/Z(mm) |
380/380/80 |
580/280/80 |
580/280/280/80 |
580/280/280/80 |
|
Max.jig size |
380x380x70 |
380x380x70 |
290x280x70 |
290x280x70 |
|
Max.load X&Y-/Z（kg） |
10kg/5kg |
10kg/5kg |
10kg/5kg |
10kg/5kg |
|
Movement speed X&Y/Z(mm/s) |
X,Y 600-800MM/S,Z 400MM/S |
X,Y 600-800MM/S,Z 400MM/S |
X,Y 600-800MM/S,Z 400MM/S |
X,Y 600-800MM/S,Z 400MM/S |
|
Decomposing ability |
0.01mm/s |
0.01mm/s |
0.01mm/s |
0.01mm/s |
|
Programming method |
Teach pendant/Microcomputer |
Teach pendant/Microcomputer |
Teach pendant/Microcomputer |
Teach pendant/Microcomputer |
|
Repeated accuracy |
+/-0.02MM |
+/-0.02MM |
+/-0.02MM |
+/-0.02MM |
|
Power supply |
AC220V,50HZ |
AC220V,50HZ |
AC220V,50HZ |
AC220V,50HZ |
|
Air pressure |
0.4 to 0.8 Mpa |
0.4 to 0.8 Mpa |
0.4 to 0.8 Mpa |
0.4 to 0.8 Mpa |
|
Memory |
1000 files |
1000 files |
1000 files |
1000 files |
|
Display |
Teach pendant LCD |
Teach pendant LCD |
Teach pendant LCD |
Teach pendant LCD |
|
Motor |
Japanese stepping motor |
Japanese stepping motor |
Japanese stepping motor |
Japanese stepping motor |
|
Working mode |
Dot/Line/Arc/Circle |
Dot/Line/Arc/Circle |
Dot/Line/Arc/Circle |
Dot/Line/Arc/Circle |
|
Driving mode |
Synchronous belt+dual guide rails |
Synchronous belt+dual guide rails |
Synchronous belt+dual guide rails |
Synchronous belt+dual guide rails |
|
Dispensing cartridge |
AB cartridge 1:1/1:2/1:5/1:10 |
AB cartridge 1:1/1:2/1:5/1:10 |
AB cartridge 1:1/1:2/1:5/1:10 |
AB cartridge 1:1/1:2/1:5/1:10 |
|
Safety operation |
Start button |
Start button |
Start button |
Enclosure with light curtains |
|
Dispensing monitor |
No |
No |
No |
Real time dispensing monitor |
|
Working environment |
-5~40℃,humidity 20%~95% |
-5~40℃,humidity 20%~95% |
-5~40℃,humidity 20%~95% |
-5~40℃,humidity 20%~95% |
Features:
1. Easy integration into any manufacturing operation
2. AB glue with different ratio can be mixed automaticly
3. Different ratio of AB glue dispensing container is available
4. The dispensing speed and amount of dispensing glue can be set separately
