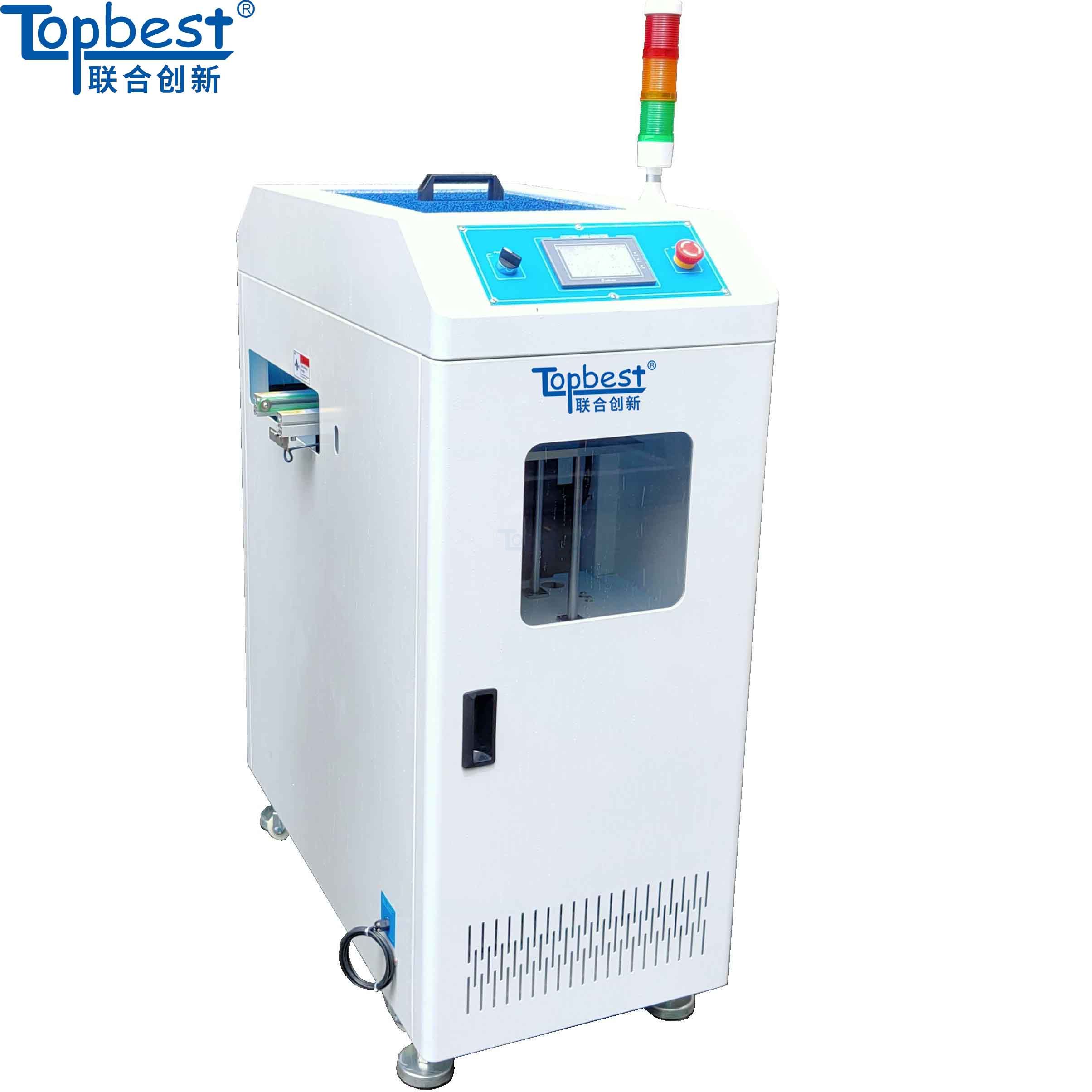

Bare Board Suction SMT PCB Loader Machine
Bare Board Suction SMT PCB Loader Machine
Product Description
SMT PCB Loader Machine Description:
Our SMT PCB Loader Machine, equipped with advanced features to streamline your PCB assembly process. This equipment boasts a Mitsubishi PLC program control system, ensuring precise and reliable performance for your production needs.
The user-friendly interface is designed with a full-color touch screen man-machine interface control panel, allowing for intuitive operation and easy access to various settings and functions. With automatic, manual, and PASS three working modes, this machine offers versatility and flexibility to adapt to different production requirements.
Constructed with utmost durability in mind, our SMT PCB Loader Machine is made from high-quality 2MM steel plate. The CNC bending process, along with laser cutting technology, ensures precise shaping and accurate dimensions. The carbon dioxide shielded welding technique guarantees a strong and firm structure, eliminating the risk of deformation during operation.
Specifications of SMT Loader
| Model | 810-SL(Loader) / 810-SU(Unloader) |
| Machine size(mm) | L650*W880*H1200 |
| PCB size(mm) | Min:L50*W50 Max:L400*W350 |
| Level height | 900+/-20 |
| PCB direction | Left to right |
| Cycling time | The cycle of a single plate is about 6 seconds |
| Maximum board capacity | 250MM stack height |
| Thickness of circuit board | Min0.6~Max2mm |
| Type of belt | Green round non-slip belt |
| Direction of transfer | From Left to Right or Right to Left(Option) |
| Power suppy | AC220V/50Hz/100W |
| Ari supply | 4~6Kg/cm2 |
Key Features of Pcb Loader Machine:
Mitsubishi PLC program control for precise and reliable operation.
Full-color touch screen man-machine interface control panel for intuitive operation.
Automatic, manual, and PASS three working modes for increased flexibility.
Standard (SMEMA) online signal compatibility for seamless integration with other equipment.
Constructed with 2MM steel plate for exceptional durability and resistance to deformation.
CNC bending and laser cutting for precise shaping and accurate dimensions.
Carbon dioxide shielded welding for a strong and firm structure.
Beauty, safety protection, and a firm structure for a superior user experience.
