Home > Construction & Real Estate > Other Construction & Real Estate > Quick Stop Auto-lock Big Flow Rate 1-1/4" Plastic Water Tank Float Valve for gardening, water tower, cooling tower, irrigation

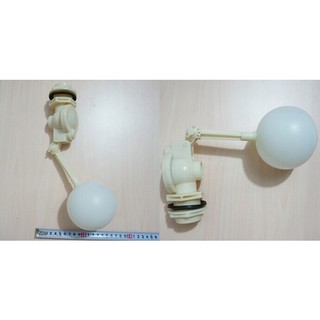

Quick Stop Auto-lock Big Flow Rate 1-1/4" Plastic Water Tank Float Valve for gardening, water tower, cooling tower, irrigation

Product Description

Description

Specifications

The function of KEYU plastic float valve is to stop the inflow of water supply when a certain desired water level is reached.

Features
  1. Easy Installation and Maintenance
  2. Accurate Water Level Control
  3. Good Performance:
  • Quiet
  • Stability
  • Quick stop
  • Long lifetime
  • Non-polluting
  • Less abrasion
  • Corrosion-resistant
  • Quick water flow rate


Technical Parameters
Mode 1-1/4" plastic float valve DN32CH
Install Size 311.00mm(Maximum)
Thread 1-1/4" Inch
Body Material ABS(Acrylonitrile Butadiene Styrene plastic)
Float Ball Material PE(Polyethylene)
Seals Material SR(Silicon Rubber)
Working Pressure 0.1-1.2 Mpa(0.1Mpa=1Bar=14.5Psi)
Working Temperature 0-70°C

Flow rate

CAD documents

Application place

The actual application depends on the specific circumstances


DN32CH plastic float valve can be installed in
water tank, cistern tank, gardening, water tower, cooling tower, irrigation, livestock, etc.

Installation

Loose the screw on the arm to adjust the float position and achieve the horizontal and vertical installation. Each of install method will not affect the performance.

Tips

1.If the body and pipe joint leak water, please check water tape is wrapped and the pipe joint is tighted.

2.The Strength should suitable when tight and fix the float valve, too much excessive strength will damage the valve.

3.Please check the water inlet filter regularly and remove the garbage out in time.

4.Please do not use the cleanser which will cause damage when clean the float valve.

Why us

Eight years export experience

Over 50 models of different float valves to choose

Our float valves have a variety of patent protection

Supply float valves to more than 500 clients overseas

The professional manufacturer water tank plastic float valve

Other service

Supporting OEM and ODM service

High temperature ,material requests, strong acid and alkali custom service.


Terms

FOB Price: 2.95 USD
Minimum Order: 10 pieces
Port: Shanghai or Ningbo or Shenzhen
Payment Terms: T/T, L/C, Paypal

Polyvinyl chloride (PVC) waterstops
