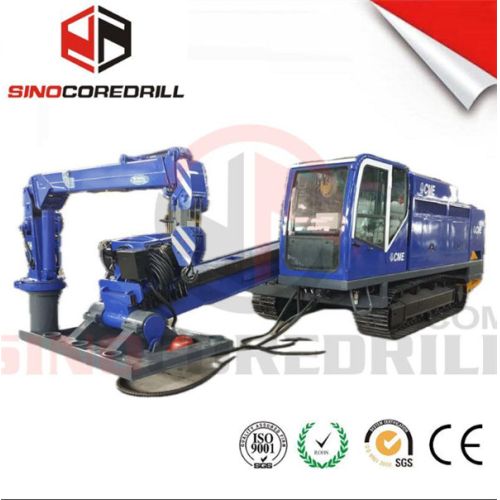

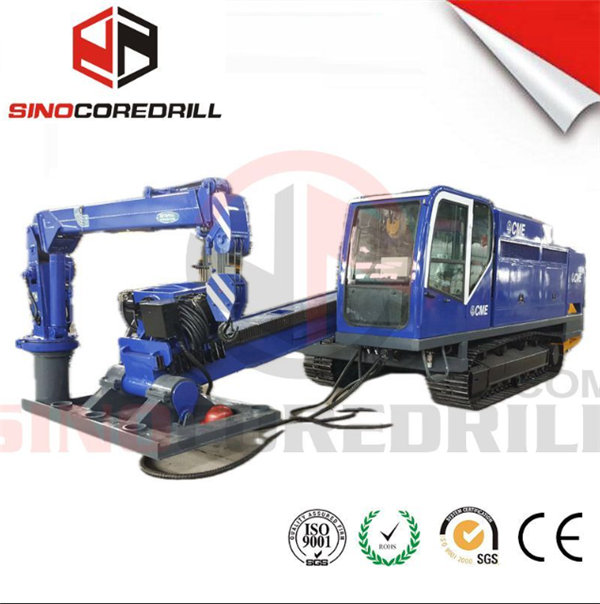

THD-70 HORIZONTAL DIRECTIONAL DRILLING MACHINE

THD-70 HORIZONTAL DIRECTIONAL DRILLING MACHINE

Product Description

The THD-70 Horizontal Directional Drilling Machine adopts full hydraulic drive and dual speed track walking; Dual low-speed motor drive power head dual speed drilling, advanced and simple structure; Gear and rack transmission system, smooth and reliable movement;The cab is equipped with air conditioning, providing a comfortable operating environment for the operator.

Our company produces multi-series and multi-varieties of horizontal directional drilling rigs with high reliability, simple structure, powerful functions and superior performance. It is a man-machine integrated pipeline construction equipment continuously improved by integrating the theory and practice of outstanding designers and constructors for more than 20 years with the current development of artificial intelligence and automation.



1. The drilling rig has a beautiful appearance, and the whole machine is fully hydraulic driven. The walking adopts wired remote control mode, and the main supporting components are selected from well-known domestic and foreign brands.

2. The characteristics of low emissions and low noise of branded diesel engines, combined with internationally leading control technologies, are not only more suitable for urban construction, but also minimize the power consumption of drilling rigs under no-load conditions.

3. The power head rotation is driven by a dual low-speed high torque motor and is equipped with a two speed stepless speed regulation function.

4. The power head push-pull is driven by a four motor gearbox and a rack and pinion transmission, with good stability.

5. It can be equipped with wireless and wired guidance devices, in terms of usage.

6. The mud pump is hydraulic driven and mechanically variable in speed, allowing for flexible adjustment of pressure and pump volume.

7. The supporting drilling tools are complete and adopted φ one hundred and two × 5000mm drill pipe, randomly equipped with a 2T crane.



Push/Pull Drive

Max Push/Pull Capacity:  70T

Push/Pull System: Rack and pinion 4 Gears driving ; 2 step-less adjustable

I gear: 9 m/min

II gear :30 m/min

Rotation

Rotary system: gear drive, 2 step-less speed regulation.

Max. Rotation Torque

I gear: 30000Nm @ 42r/min

II gear: 15000Nm @ 84r/min

Main Configuration of THD-70

Part name

Components

Technical specification

Manufacturer

Power Engine

Diesel engine

220KW              1set

Weichai Power Co.,Ltd.



Elastic coupling



Germany KTR



Hydraulic pump

                   4sets

American Sauer-danfoss



The above power includes hydraulic mud pump power

  Mast

Rack:

Made of high-quality alloy

Molds:10



 Case

Made of section steel, steel plate fixture welding



Rotation head

Rotary motor

MS Series Low speed high torque motor   2sets

France Poclain hydraulics



Walking motor

High speed torque motor   4sets

American Sauer-danfoss



Rotation head adopts first reduction, gear transmission.  It is equipped with floating device for diverting drill pipe, wire inlet and mud inlet controlled by wire.

Rig holding shackle

Hydraulic Cylinders

Seals :  adopts German parker products



Hydraulic System

Main control valve



American Sauer-danfoss



Hydraulic accessories



Liming Hydraulic Company



Cooling Mode

Water cooling + air cooling

Liming Hydraulic Company

Drill control

The rig adopts electro-hydraulic control, closed and open load sensing system, and manual function to increase the reliability of the rig

Operation Room







Mud Pump



1     set



Crane



2ton



Crawler Motor





Doosan In South Korea

Diesel Fuel tank



600 L









THD-70 Horizontal Directional Drilling Machine
