Ceramic Pin Gauge Set
Ceramic Pin Gauge Set

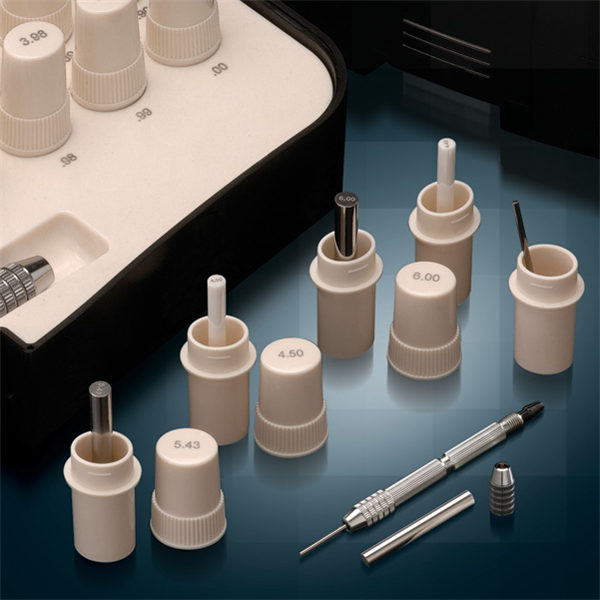

Product Description
• Product Model: RTP Ceramic Pin Gauge Set
• Set/Single Item Classfication: Set metric gauge
• Material: Ceramic
• Model: RT0A-RT4B
• Hardness: Upper HV 1200
• Dimension classification: 0.01 mm
RTP's ceramic pin gauges are made from zirconia.
● Rust-free and simple maintenance and callibration.
● Not affected by chemicals.
● Non-magnetic body without getting magnetized
Advantages of Ceramic Pin Gauge
● Corrosion resistance
● High temperature resistance
● Rustless
● Non conducting
● Non stick products
● Simple maintenance and pin gauge callibration
Features of Ceramic Pin Gauge
● Hardness of ceramic pin gauge ranks second behind diamond, with features of corrosion resistance and no rust, strong resistance to chemicals.
● Easy to store, the co-efficient of thermal expansion is almost the same as steel.
● Not limited by temperature and long-lasting.
● Non-magnetic and non-sticky and non-rusting.
Models of Ceramic Pin Gauge Set
| Material | Model No. | Size (0.01mm) | Quantity (pcs) | Material | Model No. | Size (0.01mm) | Quantity (pcs) |
|
Ceramic pin gauge Set |
Ceramic pin gauge Set |
RT-5A | 5.00, 5.01~5.50 | 51 | |||
| RT-0B | 0.50, 0.51……1.00 | 51 | RT-5B | 5.50, 5.51……6.00 | 51 | ||
| RT-1A | 1.00, 1.01……1.50 | 51 | RT-6A | 6.00, 6.01……6.50 | 51 | ||
| RT-1B | 1.50, 1.51……2.00 | 51 | RT-6B | 6.50, 6.51……7.00 | 51 | ||
| RT-2A | 2.00, 2.01……2.50 | 51 | RT-7A | 7.00, 7.01……7.50 | 51 | ||
| RT-2B | 2.50, 2.51……3.00 | 51 | RT-7B | 7.50, 7.51……8.00 | 51 | ||
| RT-3A | 3.00, 3.01……3.50 | 51 | RT-8A | 8.00, 8.01……8.50 | 51 | ||
| RT-3B | 3.50, 3.51……4.00 | 51 | RT-8B | 8.50, 8.51……9.00 | 51 | ||
| RT-4A | 4.00, 4.01……4.50 | 51 | RT-9A | 9.00, 9.01……9.50 | 51 | ||
| RT-4B | 4.50, 4.51……5.00 | 51 | RT-9B | 9.50, 9.51……10.00 | 51 |
Specification of Ceramic Pin Gauge
| Specifications | ||||
| Level-K | ||||
| Size (mm) | Tolerance(μm) | Roundness(μm) | Length(mm) | Hardness |
| 0.50, 0.51……12.99 | ±0.5μm | 0.5μm | 50 | HRA:90-92 |
| 13.00, 13.01……20.99 | ±0.5μm | 0.6μm | 50 | |
| 21.00, 21.01……30.00 | ±0.5μm | 0.8μm | 50 | |
| Level-0 | ||||
| Size (mm) | Tolerance(μm) | Roundness(μm) | Length(mm) | Hardness |
| 0.10, 0.11……0.50 | ±1μm | 0.5μm | 50 | HRA: 90-92 |
| 0.50, 0.51……12.99 | ±1μm | 0.5μm | 50 | |
| 13.00, 13.01……20.99 | ±1μm | 0.6μm | 50 | |
| 21.00, 21.01……30.00 | ±1μm | 0.8μm | 50 | |
