Welding Turntable

The Welding Turn Table is an essential tool for positioning precision workpieces in metalworking. If you are looking for a rotary table for welding, a low cost rotary tube welder or accessories, then you have come to the right place. Olivte specializes in quality rotary welding tables, orbital welders, turntables and accessories.

Product Description

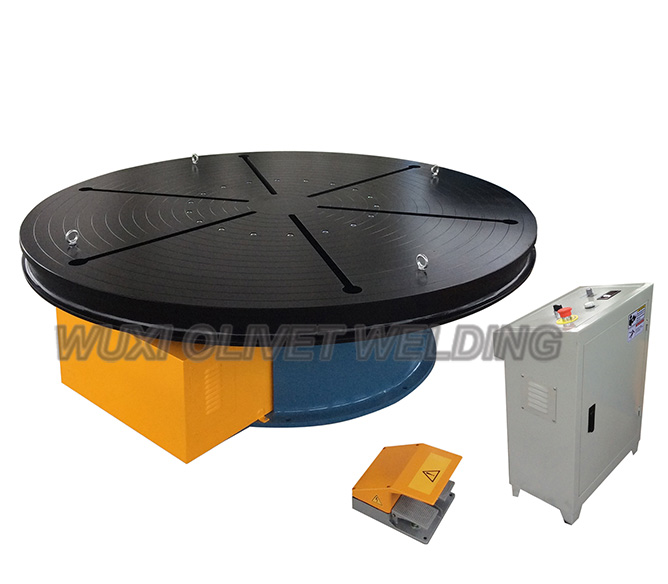

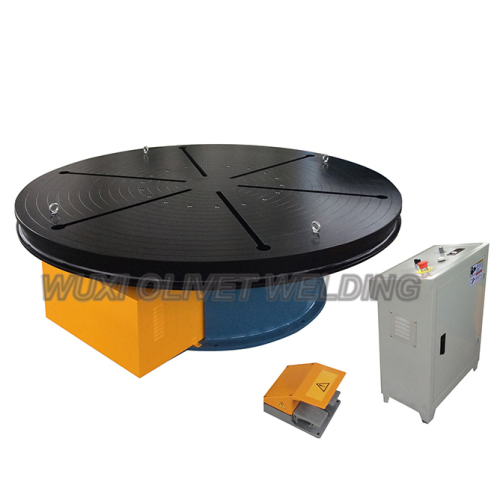

Welding Turntable - HJ Series




Stable Rotating Process

Olivet has a comprehensive range of positioner / welding turntable for automatic welding. These high quality rotary welding shifters or welding turntables are carefully manufactured in China to make welding round objects easier and more efficient. A reversible variable speed control box allows you to dial in exactly the right speed, while an optional variable speed pedal adds another level of control. Choose from flat or collet models. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's  welding positioners are with capacities ranging for 300 to 100,000 kg(660lb - 220462lb).

HJ Series welding turntables are the best solution to the problem of rotating demanding big work pieces. Rotation speed can be very fast under VFD adjustable. They have infinitely variable height control as a result of a remote control of all functions. They are ideal for welding, flame cutting, thermal spraying, sanding, painting, x-ray and drill press positioning, but the possible applications are endless.



Benefits of Purchasing a Welding Turntable

The Welding Turn Table solution offers many benefits to the individual employee and the company. These benefits include:

Improved Weld Quality: By rotating the workpiece, a welding turntable enables the welder to maintain a consistent angle and travel speed during the welding process. This helps in achieving uniform and high-quality welds, reducing the likelihood of defects such as undercuts and inconsistent bead profiles.

Enhanced Welding Efficiency: Welding turntables allow for continuous welding on a rotating workpiece, which reduces the need for frequent starts and stops. This results in improved productivity and faster completion of welding projects.

Easy Access to Welding Joints: A welding turntable can be adjusted to various angles and positions, making it easier for welders to access hard-to-reach welding joints. This ensures that all sides of the workpiece can be welded without the need for uncomfortable or hazardous body positions.

Increased Welder Safety: Using a welding turntable can significantly reduce the need for welders to reposition themselves constantly during the welding process. This minimizes the risk of fatigue and potential injuries associated with repetitive movements.

Versatility: Welding turntables are available in various sizes and weight capacities, making them suitable for welding a wide range of workpieces, from small components to large structures. They can also be used in combination with other welding equipment, such as welding manipulators, for even greater flexibility.

Consistent Heat Distribution: The rotation of the workpiece on the welding turntable ensures more even heat distribution during the welding process. This helps prevent distortion and warping of the workpiece, particularly in thicker materials.

Reduced Welding Spatter: By maintaining a steady welding speed and angle, a welding turntable can help reduce spatter formation, leading to a cleaner and more efficient welding process.

Cost-Effectiveness: While a welding turntable is an investment, its advantages in terms of increased productivity, improved weld quality, and reduced rework can lead to cost savings in the long run.



Main Technical Parameters of Welding Turntable

If you need less than 1000kg or more than 100,000 kg you can ask us directly!

Model

Max. load

Eccent. distance

Rotation speed

Motor Power

Table Height

Table diameter

HJ-10

1,000 kg (2204lb)

300 mm

0.1 - 1 rpm

0.37    kW

413 mm

1000 mm

HJ-20

2,000 kg (4409lb)

300 mm

0.1 - 1 rpm

0.55    kW

413 mm

1200 mm

HJ-30

3,000 kg (6613lb)

300 mm

0.1 - 1 rpm

0.75    kW

512 mm

1400 mm

HJ-50

5,000 kg (11023lb)

300 mm

0.1 - 1 rpm

0.75    kW

520 mm

1800 mm

HJ-100

10,000 kg (22046lb)

300 mm

0.05 - 0.5 rpm

1.5    kW

600 mm

2000 mm

HJ-200

20,000 kg (44092lb)

300 mm

0.04 - 0.4 rpm

3 kW

650 mm

2000 mm

HJ-300

30,000 kg (66138lb)

300 mm

0.04 - 0.4 rpm

4 kW

700 mm

2000 mm

HJ-500

50,000 kg (110231lb)

300 mm

0.02 - 0.2 rpm

5.5 kW

1000 mm

3000 mm

HJ-800

80,000 kg (176369lb)

300 mm

0.02 - 0.2 rpm

5.5 kW

1150 mm

3200 mm

HJ-1000

100,000 kg (220462lb)

300 mm

0.02 - 0.2 rpm

11 kW

1200 mm

3500 mm





































Scope of Delivery

A.  1 Main Body

B.  1 Electric control system

   1 control panel

   1 remote pendant

   1 foot switch
