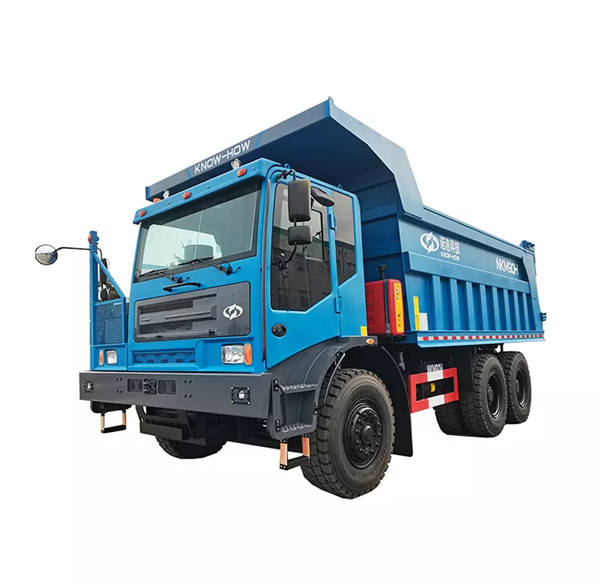

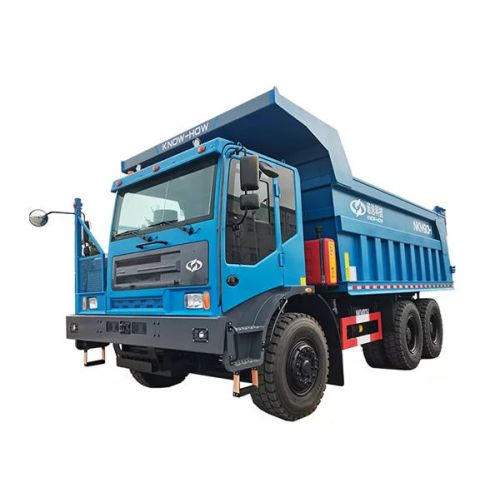

NKM90H diesel dump truck
NKM90H 90 tons,rated loading 60 tons,420hp strong power,diesel mining dump truck
Product Description
NKM90H 90 tons dump truck,rated loading 60 tons,
420hp strong power,diesel mining dump truck
equipped FASTGEAR Mechanical automatic transmission 7DS220/MT
Product Parameters
| Diesel Dump truck Parameters | ||
| Vehicle Spec. | Unit | NKM90H |
| Total Vehicle Weight | KG | 90000 |
| Rated Loading Weight | KG | 59000 |
| Tank Cubic Volume | Cubic Meter | 33(Flat),36(Stack) |
| Axle Loading Front/Middle/Rear | t | 20+35+35 |
| Engine Type/HorsePower | Hp | YC6K480-GT30(480hp) |
| Gearbox type | / | Faust 7DS220/MT(Mechanical Transmission) |
| Steering system | / | Full hydraulic steering |
| Suspension System(Front/rear) | / | Hydro-pneumatic spring/balance shaft general hanging |
| Braket System | / | Welded rigid tank frame /480x140 |
| Vehicle Dimension | mm | 9100*3450*4130 |
| Driven Type | / | 6*4 |
| Max Speed | km/h | 43 |
| Min Turning Radius | m | 11.5 |
| Vehicle Length | mm | 9100 |
| Front Middle Axle wheel base | mm | 3800 |
| Middle Rear Axle Wheel Base | mm | 1560 |
| Vehicle Height | mm | 4130 |
| Vehicle Width | mm | 3450 |
| Rear Wheel distance | mm | 2526 |
Know-How Equipment aims to create four core advantages of being safe,reliable,efficient and economical.
