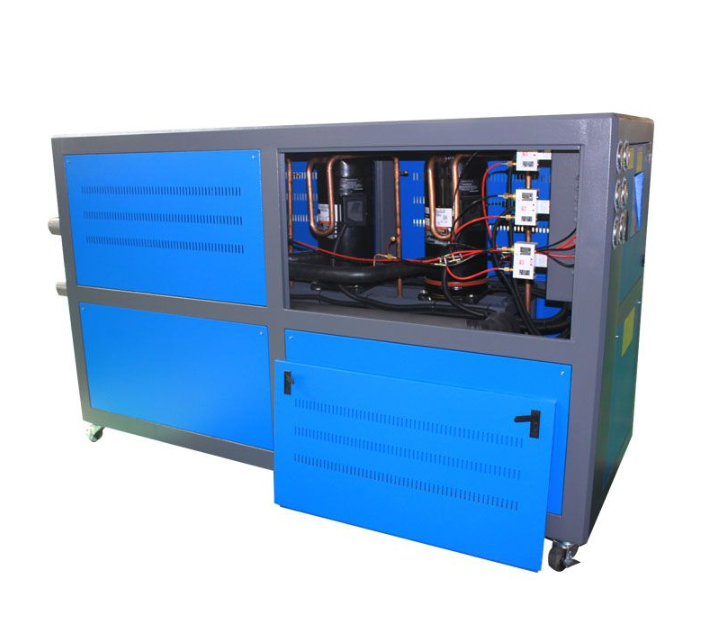

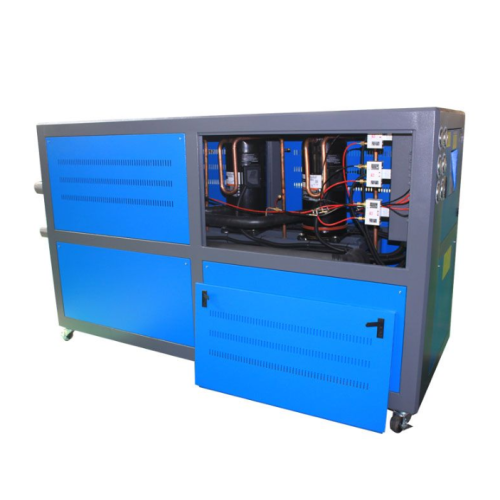

High Efficiency Industrial Water Cooled Scroll Chiller
High Efficiency Industrial Water Cooled Scroll Chiller
Product Description
The High Efficiency Industrial Water Cooled Scroll Chiller cooling capacity from 9KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. It is automatically adjusted according to load changes and is more energy efficient.
Features of Water Cooled Scroll Chiller:
1. Energy with high efficient
2. Operation noise and vibration is low
3. No friction loss
4. Low starting current
5. High system sustainability
6. Environmental protection
Safety system:
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
| Box type water cooled scroll industrial chiller(R-22) | |||||||||||
| Model | HTB-9S | HTB-15S | HTB-23S | HTB-30S | HTB-35S | HTB-45S | HTB-46S | HTB-60S | HTB-90S | HTB-120S | |
| Cooling Capacity |
KW | 8.5 | 15 | 23.2 | 30.1 | 35 | 45 | 46.4 | 60.2 | 90.3 | 120.4 |
| Kcal/Hr | 7310 | 12900 | 19952 | 25886 | 30100 | 38700 | 39904 | 51772 | 77658 | 103544 | |
| RT | 2.42 | 4.26 | 6.6 | 8.56 | 9.95 | 12.79 | 13.19 | 17.12 | 25.68 | 34.23 | |
| Power | 50HZ | 3P-380V-50HZ | |||||||||
| Comprosser | Mode | Full closed high efficiency flexible scroll compressor | |||||||||
| Input power(KW) | 1.97 | 3.45 | 4.94 | 6.5 | 7.4 | 10 | 9.88 | 13 | 19.5 | 26 | |
| Rated load current(A) | 3.9 | 8.2 | 9.8 | 12.6 | 13.7 | 21 | 19.6 | 25.2 | 37.8 | 50.4 | |
| Wiring specification | 4 | 4 | 6 | 6 | 6 | 10 | 10 | 16 | 25 | 25 | |
| Add unloading way | 0,100% | 0,50%,100% | 0,33%,66%, 100% |
0,25%,50%, 75%,100% |
|||||||
| Condensor | Cooling water temp（℃） | Inlet temp 30℃/outlet temp 35℃ | |||||||||
| Cooling water flow(m³/h) | 1.83 | 3.23 | 4.99 | 6.47 | 7.53 | 9.68 | 9.98 | 12.94 | 19.41 | 25.89 | |
| Waterpipe diameter(DN) | 32 | 32 | 40 | 40 | 40 | 50 | 50 | 50 | 65 | 80 | |
| Evaporater | Freeze water temp（℃） | Inlet temp 12℃/outlet temp 7℃ | |||||||||
| Freeze water flow（m³/h) | 1.46 | 2.58 | 3.99 | 5.18 | 6.02 | 7.74 | 7.98 | 10.35 | 15.53 | 20.71 | |
| Waterpipe diameter(DN) | 32 | 32 | 32 | 40 | 40 | 50 | 50 | 50 | 65 | 80 | |
| Safeguard | Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc. | ||||||||||
| Size | L(mm) | 980 | 1210 | 1250 | 1250 | 1400 | 1400 | 1500 | 1640 | 1900 | 2500 |
| W(mm) | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 | 850 | 800 | |
| H(mm) | 1080 | 1080 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1250 | 1250 | |
| Units Weight | Kg | 210 | 240 | 300 | 320 | 340 | 370 | 440 | 560 | 630 | 720 |
