Full Hydraulic Top Hammer Surface drilling rig

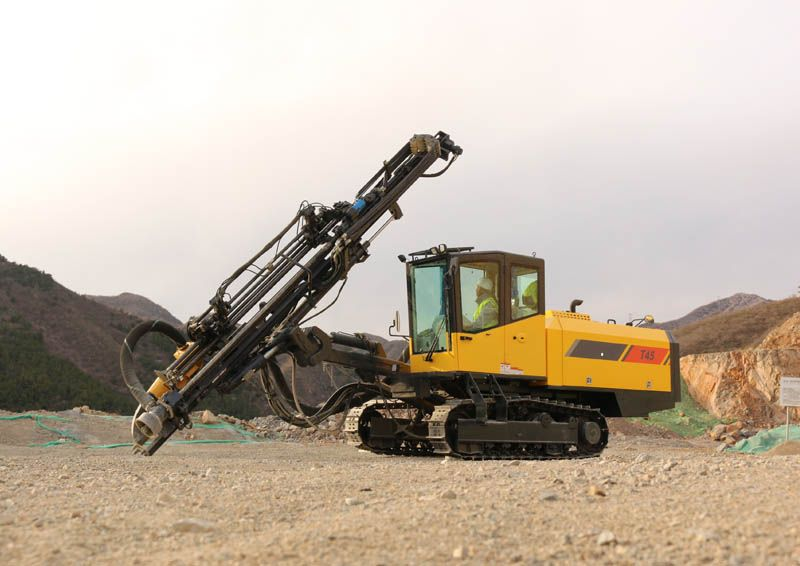

T45 full hydraulic top hammer surface rock drilling rig uses the world famous YAMAMOTO high-power hydraulic rock drilling rig for perforating operation. It is suitable for all kinds of medium-sized open-pit mines and quarries, and is especially suitable for perforating operations in rock layers above medium hardness. The perforating speed is fast, the production efficiency is high, the comprehensive fuel consumption is low, and the dust removal effect is good. It is an efficient, energy saving and environmentally friendly rock drilling equipment.

Technical Features

HBXG top hammer drill rigs are equipped with powerful hydraulic rock drills that offer high penetration rates, reliability, and excellent fuel economy. This compact, four-wheel drive rig, is tailor-made for marble, granite and sandstone quarries.

These diesel-powered rigs represent the industry's leading range, from lightweight rubber-tire drills to the most powerful production drills available. Between their excellent fuel economy and low operating costs, these diesel-powered, self-propelled hammer drilling rigs are designed not only to operate at low costs, but are fully equipped to provide your staff with the highest levels of comfort and safety. Get a free quotation about the low price top hammer surface drill rig.

Features of top hammer drill rig

1. High-power hydraulic rock drill, with large impact energy and back-strike function, effectively reduces the risk of sticking and saves drilling tools;

2. The core components adopt internationally renowned brands, with good reliability, high operating efficiency and low energy consumption;

3. Rock drill-air compressor-engine benchmark matching, with economical/powerful dual operation mode. Wide adaptability of rock formation and low operating cost;

4. The whole machine has a compact structure, small and flexible, fast walking speed and strong off-road ability;

5. Adopt foldable drill arm. One-time coverage area drilling, suitable for multi-angle control drilling, fast and fast drilling positioning.

Structure of top hammer drilling rig

Our Full hydraulic surface top-hammer drilling rig has a perfect combination:

1. Hydraulic rock drill

YAMAMOTO YH-100 hydraulic rock drill is the core component of the rig, which directly affects the reliability and service life of the whole machine. YH-100 rock drill is manufactured in Japanese factory, with reliable quality, sturdy and durable. Since 1979, it has provided a series of hydraulic rock drills to the world famous drill rig manufacturers. The hydraulic rock drill has an impact power of 20.6kw and an impact frequency of up to 2500bpm, which is very suitable for drilling operations with a hole diameter of 76mm ~ 127mm.

2. Compressor of Full Hydraulic Top Hammer Surface drilling rig

American Sullivan-Palatek is a world-renowned manufacturer of screw compressors, and its screw assemblies are well-known for their high efficiency, reliability and long life. The compressor discharge volume is 10.5 m³/ min, and the discharge pressure is 10.5 bar. Even under complicated geological conditions, it can provide sufficient gas for cleaning holes and smoothly discharge rock cuttings.

3. Control System of Full Hydraulic Top Hammer Surface drilling rig

The unique and easy-to-control rock drilling control system can automatically adjust the propulsion speed, propulsion pressure, slewing torque and impact pressure according to the rock conditions, to achieve the best working condition, and eliminate abnormal accidents such as stuck thread wear. The components of the hydraulic system are selected from domestic and abroad well-known manufacturers to ensure the reliability and durability of the whole machine.

As one of the professional top hammer surface drill rig manufacturers, HBXG understands your drilling equipment needs, which is why drilling rigs are perfectly engineered for optimum precision, efficiency and safety. Whether you're drilling production holes, presplit holes, or anything in between, all of our rock drilling machines are built with safety in mind.
