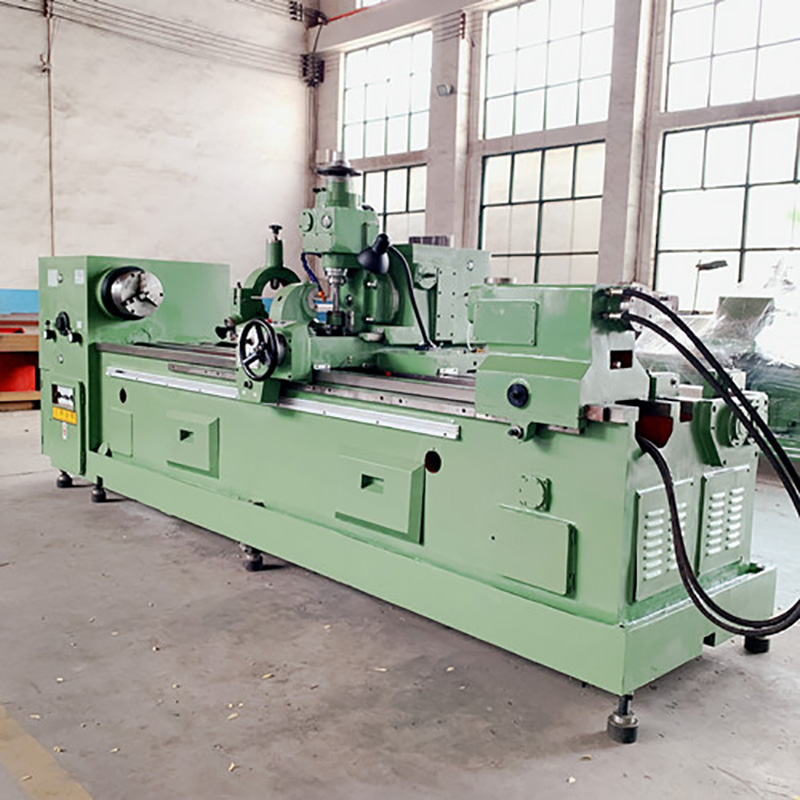

GP6020 semi-automatic spline shaft milling machine is designed to process straight-slot long spline shaft through hobbing. It can also be used to process straight gear shaft.
Product Description
GP6020 semi-automatic spline shaft milling machine is designed to process straight-slot long spline shaft through hobbing. It can also be used to process straight gear shaft.
This machine, by applying electrical hydraulic control, could realize semi-automatic one-time work cycle, automatically completing the following action: Rapid approaching of milling head; vertical cutting of the slide; rapid return of the milling head; rapid return of the slide
The machine has a mechanism that could eliminate the gap between feed screws and nuts, and perform hydraulic control against tensioned workpiece at down milling tailstock
1. Lathe Bed
The lathe bed is a rectangular box with sufficient rigidity. On the left side of the bed locate the electrical box, the main motor and the fast motor. On the right side of the bed locates the hydraulic control equipment. The cooling pump motor and coolant tank are located in the middle of the hydraulic oil bath.
2. Lathe Head
The lathe head is equipped with the components of the index feed rapid transmission mechanism. Open the rear door of the lathe head, there is the exchange hanging wheel for milling cuter speed indexing and feeding. Its major function is to transmit the indexing movement to workpiece supporting workpiece, transmit the feeding movement to the feed screw and transmit the milling cutter rotary movement to the feed rod.
Maximum processing diameter |
200mm |
Max. Module of the processed teeth |
8mm |
Max. gradient angle of the teeth of the processed gear wheels |
±45 |
Maximal length of splines to be installed |
2500 mm |
The maximum Diameters of gears to be Treated |
500mm |
Maximum Processing length of splines |
2300mm |
The number of processed spline teeth |
4-50 |
Milling cutter speed Grade |
P6 |
The milling cutter speed range |
50-160rpm |
The Grade of feeding |
12 |
Feeding range from |
0.41-2.97 RPM |
distance between the workpiece center and center of hob |
50-165mm |
Maximum Diameter of installed milling cutter |
130mm |
Maximum Installation length of milling cutter |
110mm |
Tool arbors |
ø 27 mm ø 32 mm ø 40 mm |
Taper of main shaft hole of milling cutter |
Morse No. 4 |
Workpiece spindle sleeve taper |
Morse No. 5 |
Taper of tail frame sleeve hole |
Morse No. 5 |
Axial Movement of milling cutter spindle |
40mm |
