coil feed laser blanking line

https://www.sz-sunrui.com/solution/coil-feed-laser-blanking-line.html

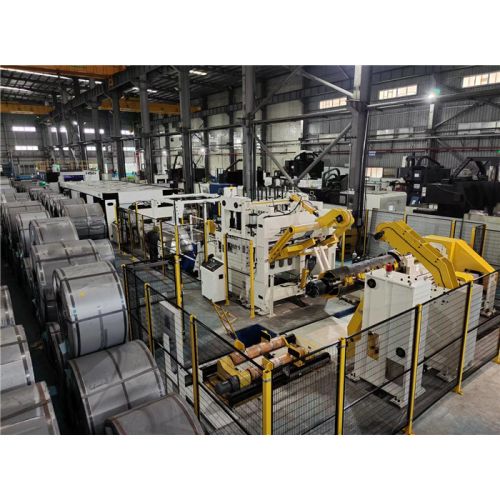

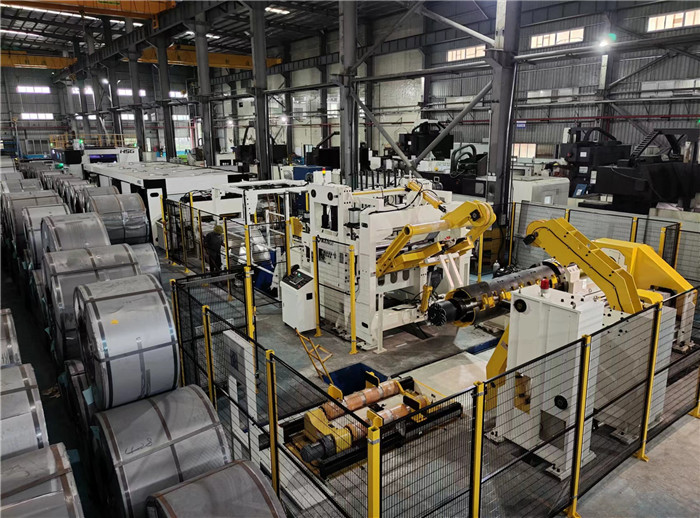

The Coil Feed Laser Blanking Line is an advanced industrial machine that is used to cut flat sheet metal blanks from a coil using laser technology. The machine is composed of several components such as the decoiler, the coil straightener, the feeder, the laser cutting machine, and the stacker. The machine works by unrolling a coil of sheet metal and feeding it into the machine. The sheet is then accurately measured and straightened before being fed into the laser cutter, where it is precisely cut into required shapes. The machine is typically used in the automotive and aerospace industries for cutting parts such as body panels or aircraft skins, that have a high degree of accuracy and precision needed. Use of the Coil Feed Laser Blanking Line ensures low waste material, reduced lead time, and increased efficiency in the production process.

Coil Feed Laser Blanking Line

Applicable material

Material Type: Cold rolled plate, Hot rolled pickling plate, High strength cold rolled plate, Galvanized plate, High strength hot rolled plate etc.

Material Thickness: 0.8-12.0mm

Coil Width: 200-1800mm

Yield strength: 245-980 N/mm2

Tensile Strength: 392-1180 N/mm2

Coil inner diameter: Φ610mm

Coil outer diameter: Φ1200-Φ1800mm

Loading weight: 20000KG

If you are looking for more details, kindly visit our website.
