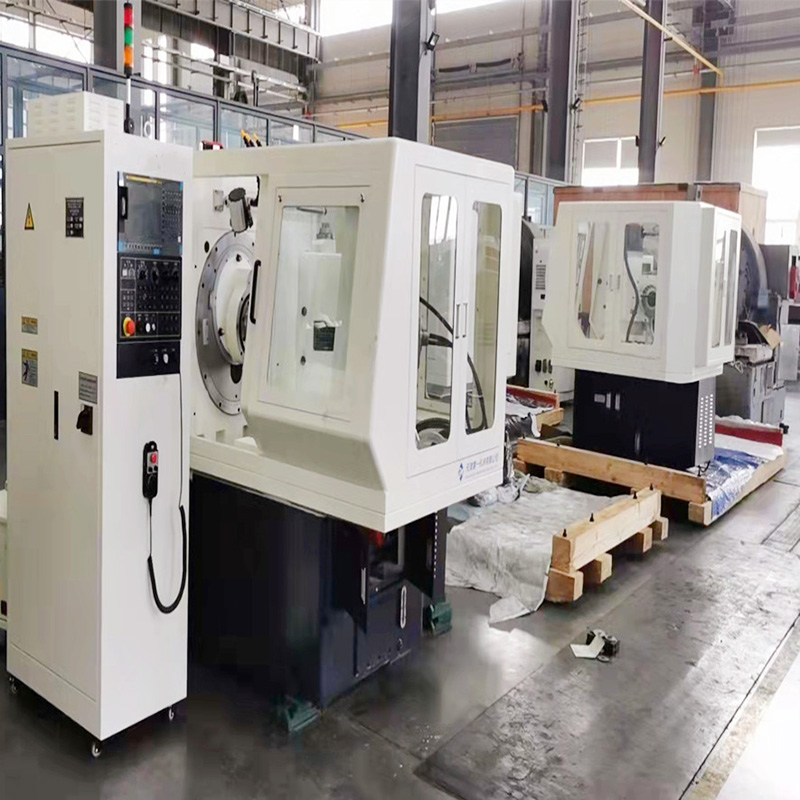

YK2232 machine tool is a CNC Spiral Bevel tooth cone gear milling machine, can be used for the maximum processing diameter of 320 mm, the maximum modulus of 6 mm Spiral Bevel tooth cone gear and quasi hyperboloid gear, suitable for light vehicles, motorcycles and mountain bikes, beach bikes and other small Spiral Bevel tooth cone gear auxiliary processing.
Product Description
PRODUCT DESCRIPTION
YK2232 machine tool is a CNC Spiral Bevel tooth cone gear milling machine, can be used for the maximum processing diameter of 320 mm, the maximum modulus of 6 mm Spiral Bevel tooth cone gear and quasi hyperboloid gear, suitable for light vehicles, motorcycles and mountain bikes, beach bikes and other small Spiral Bevel tooth cone gear auxiliary processing.
This machine tool is a general machine tool, can complete rough and fine machining of main and passive gears, machining accuracy of level 6 level (GB / T11365-89).
This machine tool is a three-axis CNC Spiral Bevel tooth cone gear milling machine, namely shake table movement (X axis), workpiece spindle movement (Y axis), bed saddle movement (Z axis), the system adopts Siemens 828D, can realize three-axis linkage.
The main motion of the knife disc spindle is driven by the frequency conversion motor to achieve stepless speed regulation.
The adjustment changes the hanging wheel, reduces the adjustment time, simplifies the user operation and improves the cutting efficiency.
Main drive AC frequency conversion motor |
3kw |
Hydraulic motor |
1.47kw |
Shaking table servo motor |
3.2kw |
Cooling motor |
150w |
Workpiece box servo motor |
3.2kw |
Dispatch motor |
100w |
Bed saddle is fed to the servo motor |
3.2kw |
Total electrical capacity of the machine tool |
15KVA |
(1) Parameters of the processed workpiece |
|
|
|
Maximum processing modulus |
mm |
6 |
|
Number of processing teeth |
|
5-100 |
|
maximum transmission ratio |
|
10:1 |
|
Maximum Cutting depth |
mm |
18 |
|
Maximum Cutting width |
mm |
40 |
|
Maximum joint circle diameter |
mm |
320 |
|
Root cone Angle: |
|
Maximum 90° |
|
Minimum of 0°~8° |
|||
(2) Workpiece main shaft |
|
|
|
Large end diameter of the spindle cone hole |
mm |
80 |
|
Tone, degree |
|
1:20 |
|
The diameter of the main shaft through hole |
mm |
45 |
|
Main shaft end surface diameter |
mm |
130 |
|
(3) The diameter of the knife plate |
|
6″、71/2″, 9″ |
|
(4) Adjustment quantity of the workpiece box |
|
|
|
Maximum vertical displacement |
mm |
±55 |
|
Distance from the spindle end surface to the center of the machine tool |
mm |
40~260 |
|
(5) Adjustment amount of the knife plate |
|
|
|
Plate speed (two levels) |
rpm/min |
50~150 |
|
feed rate |
Seconds / teeth |
6~60 |
|
(6) Beds |
|
|
|
Maximum displacement from the center |
mm |
Forward, 30 |
|
Back 120 |
|||
(7) Net weight of the machine tool |
t |
About, 6 |
|
(VIII) Overall dimension (length, width and height) |
mm |
1800×1490×1725 |
