AGV Pallet Truck

The AGV Pallet Truck, also known as a fork-type AGV, is an automated guided vehicle designed for transporting pallet loads within manufacturing facilities.

Product Description

AGV Pallet Truck Product Description

SLAM Positioning

Support Mobile APP Operation

Full Security Protection Guarantees

Free Maintenance

Full Electric Type

Optional Pallet Identification



AGV Pallet Truck - Compact, Swift, Accurate... and Driverless.

The AGV Pallet Truck, also known as a fork-type AGV, is an automated guided vehicle designed for transporting pallet loads within manufacturing facilities.

These pallet-moving robots are easy to deploy, requiring no infrastructure modifications, and can often be seamlessly integrated into your standard processes without any alterations. The advantage of AGVs lies in their driverless operation, particularly beneficial when compared to manually operated pallet trucks moving pallets from point A to point B.

The Automated Pallet Lift is a self-driving and navigating AGV with the ability to perform limited vertical movements. This allows it to reach pallets on lower-height shelves or racks and facilitates operations between floors.

The Autonomous Pallet Mover falls into the "smallest" category within the forklift AGV classification.

Stabilizers are positioned beneath the forks of these autonomous pallet robots. These stabilizers reduce the AGV's size, weight, and enable a smaller turning radius, ensuring exceptional maneuverability.

Due to the presence of fork stabilizers, Autonomous Pallet Movers are suitable for single-sided pallets only.



What is the load capacity of AGV Pallet Trucks?

While we can find vehicles with a weight capacity of up to 3 tons (6,600 pounds), these vehicles typically have a load capacity of around 1 ton (approximately 2,200 pounds).

What is the lifting capacity of robot pallet trucks?

Regarding lifting height, standard vehicles typically have a typical stacking height of around 1.5 meters (5 feet), but some vehicles can reach up to 3 meters (10 feet).



Within this category, there are dedicated "pallet movers" – AGVs designed solely for lifting pallets a few inches/centimeters off the floor for stacking. These pallet-moving robots are commonly used for transporting between floors.



Application

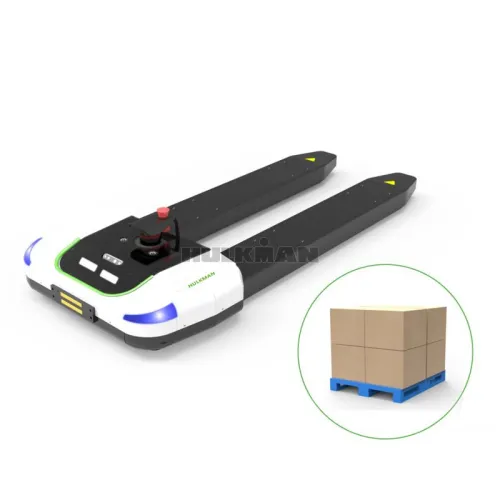

1.0Ton AGV Pallet Truck



AGV pallet truck safety - Intelligent Control System

● Intelligence Leader. Adopt unmanned driving framework algorithm, intelligent path selection and obstacle avoidance, traffic prediction, autonomous picking and release.

● Rapid Deployment. Support SLAM positioning without reflectors, reduces deployment cycle, support "dumb" mapping mode, make mapping extremely simple, and support mobile APP operation.

● Full Security Protection. Deep vision, plane laser and backward sensing not only bring a full perception capability, but also provide a full security guarantees.

1.0Ton AGV Pallet Truck

1. Audible & Visual Alarm

2. Visual Collision Avoidance

3. Laser Collision Avoidance

4. Emergency Stop Button

5. Rear Collision Avoidance

6. Optional Pallet Identification



Process Design Structure

1.0Ton AGV Pallet Truck

● Appearance Design. Streamlined body design, creating the beauty of craftsmanship; The smart display of vehicle status makes smart technology simpler.

● Full Electric Type, Reliable Quality. Travel and lift are all electric, lift and down are synchronized, motor is free maintenance; Patented lifting structure design, non-hydraulic principle, no oil leakage hidden danger, meet food and medicine cleanliness requirements.

● Upgrade Power, Longer Battery Life. Balance volume and battery capacity, optimize power consumption algorithm and charging mechanism, use less energy consumption to have longer battery life.



Customized AGV Pallet Truck Solution

1.0Ton AGV Pallet Truck

Specification Parameters

Model

LTB1000

Rated Load

1000kg

Load Center

600mm

Max. Lifting Height

60mm

Fork Outer Width

584mm

Turning Radius

1200mm

Dimension

1657*785*265mm

Fork Size

1200*184*98mm

Load/Unload Travel Speed

0.7/1.0m/s

Navigation Method

Laser Navigation

Position Accuracy

±10mm

Battery Voltage/Capacity

48V/36Ah

Battery Type

LiFePO4

1.0Ton AGV Pallet Truck
