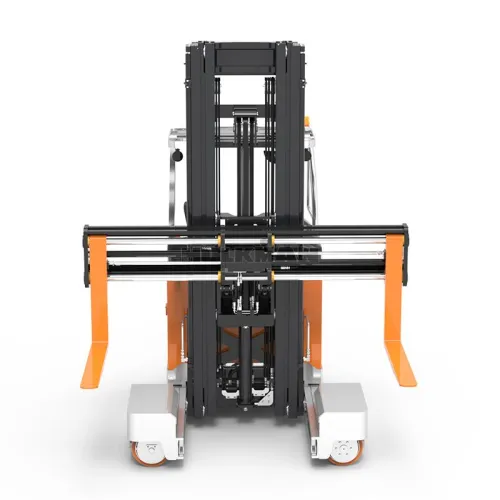

2.5Ton 3Ton Full Directional Electric Forklift
HULKMAN FDT series full-directional electric reach truck is suitable to carry very long materials and stack in very narrow aisles. It is a very good partner for cantilever shelves. And its lifting height can be customized from 2.5 meters to 10.5 meters.
Product Description
Choose from our selection of Multi-Directional Forklifts, including the 2.5Ton 3Ton Full Directional Electric Forklift and the 1.6Ton 2Ton 4-Directional Electric Forklift. Each model is designed with precision engineering and built to deliver exceptional performance, durability, and reliability in your material handling operations. Find the perfect forklift that meets your specific needs and enhance your handling efficiency.
Product Description
Carry Very Long Materials, Stack in Very Narrow Aisles
Drive-In Multiple Directions, Forwards, Backwards, Sideways
Moving Long Length Products Such as Metal Profiles, Plates, Glass Plates, Pipes, Etc.
Narrow Aisle Stacking, Aisle Width Only Need 2300mm
Mini Right Angle Turning Aisle Width Less Than 2100mm
Turning Radius Less Than 1225mm
- Introduction
- HULKMAN FDT series full-directional electric reach truck is suitable to carry very long materials and stack in very narrow aisles. It is a very good partner for cantilever shelves. And its lifting height can be customized from 2.5 meters to 10.5 meters.
- What’s more, FDT series reach truck can not only completely replace normal forklift, but also drive in multiple directions. It is the best choice for 3-10m length long products moving, such as metal profiles, plates, glass plates, pipes, etc.
- Advantages
- 48V full AC system, rapid response, accurate steering angle control, high electrical integration, low energy consumption.
- Spool is imported from America, precise hydraulic control, can meet AGV application requirements.
- Electrical modular control technology, CAN bus communication, more easy for AGV modification.
- The load wheel is equipped with 5 stage steering deceleration, with small control current, makes steering angle controlled more precise, effectively extends the steering motor service life.
- Full wheels display in real time, with high recognition, makes operation more easy, direction control more precise in narrow aisles, work more safe and reasonable.
- Double clutch type driving brake and parking brake, make the deceleration brake more stable and more secure.
- Human engineering ergonomics machine design, will give operator more comfortable work feeling and more excellent driving experience.
- Specification Parameters
|
Model |
|
FDT25 |
FDT30 |
|
Power Supply |
|
Electric |
Electric |
|
Driving Type |
|
half closing sitting |
half closing sitting |
|
Load Capacity |
Q(kg) |
2500 |
3000 |
|
Load Center |
C(mm) |
600 |
500 |
|
Rear Overhang |
x1(mm) |
498 |
498 |
|
Front Overhang |
x(mm) |
175 |
175 |
|
Wheelbase |
y(mm) |
1700 |
1700 |
|
Truck Weight（Include Battery） |
kg |
4400 |
4500 |
|
Battery Weight（±5%） |
kg |
920 |
1020 |
|
Tires Front/Rear |
|
PU |
PU |
|
Front Load Wheels（Diameter*Width）Single Wheel |
mm |
φ280×135 |
φ280×135 |
|
Rear Driving Wheel（Diameter*Width) Single Wheel |
mm |
φ343×140 |
φ343×140 |
|
Wheel Quantity Drive Wheel/Load Wheel |
pcs |
1X/2 |
1X/2 |
|
Front Wheels Distance |
b3(mm) |
1392 |
1392 |
|
Lifting Height |
mm |
3000-10000 |
3000-10000 |
|
Fork Tilting Front/Rear |
α/β(°) |
2/4 |
2/4 |
|
Lifting Height |
h1(mm) |
See attachment |
See attachment |
|
Overhead Guard Height |
h5(mm) |
2190 |
2190 |
|
Seat Height/Operation Platform Height |
(mm) |
1100/1350 |
1100/1350 |
|
Min Ground Clearance |
h8(mm) |
40 |
40 |
|
Balance Leg Height |
h10(mm) |
457 |
457 |
|
Overall Length（Include Fork） |
l1(mm) |
2470 |
2320 |
|
Overall Width |
b1(mm) |
1728 |
1728 |
|
Fork Size |
l/e/s(mm) |
1070/100/45 |
920/125/45 |
|
Rear Chassis Width |
b2(mm) |
1230 |
1230 |
|
Fork Width |
b5(mm) |
355-880 |
380-880 |
|
Inside With of Legs |
b6(mm) |
920 |
920 |
|
Min Turning Radius |
Wa(mm) |
1952 |
1952 |
|
Min Aisle Width(Go Straight) |
（mm） |
2075 |
2075 |
|
Minin Aisle Width When Side Moving Pallet 3000×1000×1000() |
（mm） |
2600 |
2600 |
|
Driving Speed Loaded/Unloaded |
km/h |
10/11 |
10/11 |
|
Lifting Speed Loaded/Unloaded |
mm/s |
250/300 |
250/300 |
|
Lowering Speed Loaded/Unloaded |
mm/s |
300/300 |
300/300 |
|
Gradeability Loaded/Unloaded |
%(tanθ ) |
8/15 |
7/15 |
|
Brake |
|
Electric |
Electric |
|
Park |
|
Electric |
Electric |
|
Driving Motor(S2-60min) AC |
kw |
8 |
8 |
|
Lifting Motor，(S3-15%) |
kw |
12.5 |
15 |
|
Steering Motor AC |
kw |
0.7 |
0.7 |
|
Battery Voltage/Capacity |
V/Ah |
48/560 |
48/600 |
