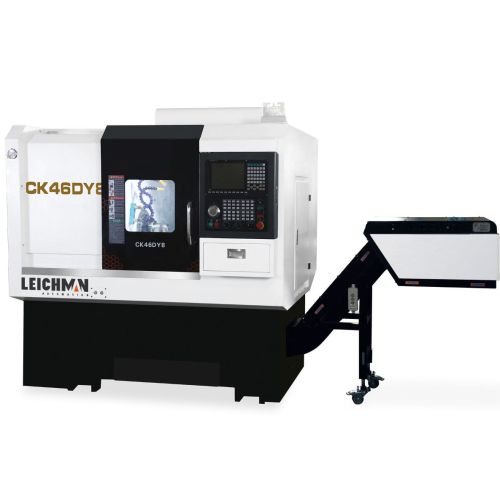

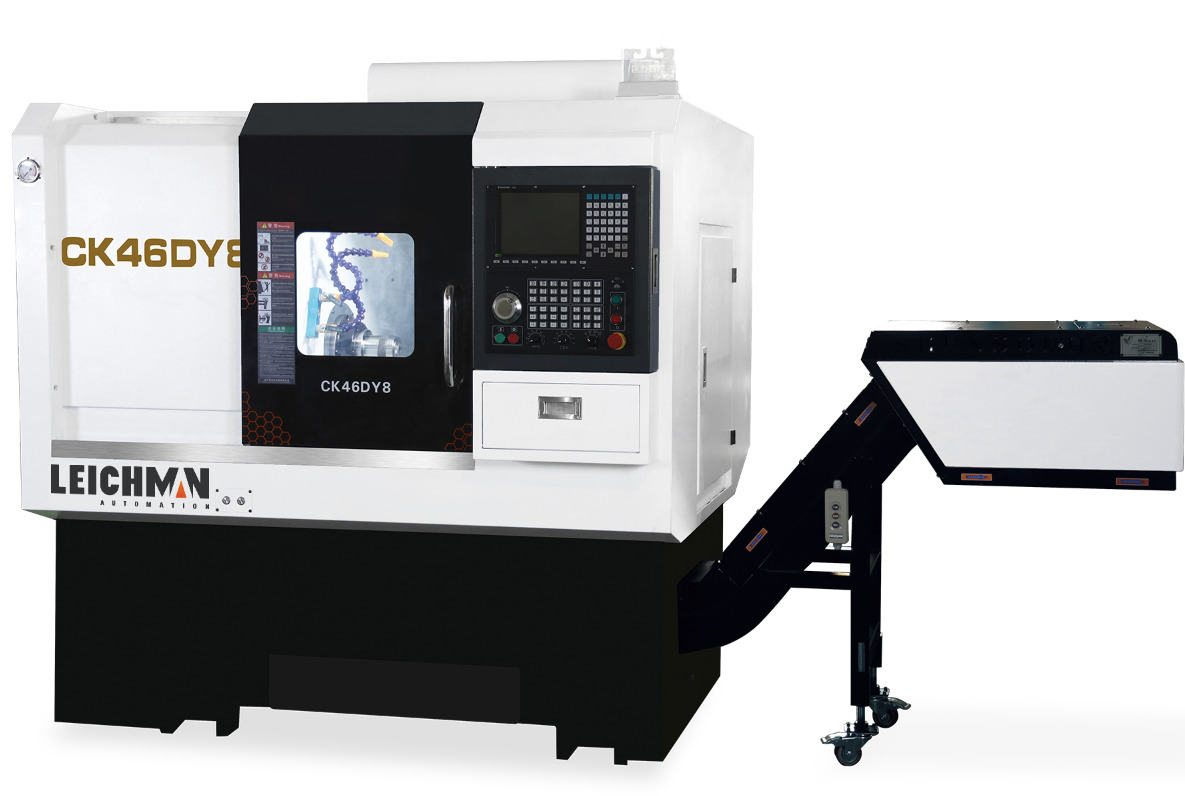

CNC Gang Tool Lathes
Leichman CNC Gang tool Lathes, also called gang style CNC lathe, feature gang type structure with options for inclined bed structure design 30°(CK46 series) / 45°(CK36 series).
Product Description
The machine tool control system adopts Taiwan SYNTEC system, and other CNC systems are optional.
The bed is inclined at 30°(CK46) / 45°(CK36), and the large carriage and the tool rest are placed obliquely, which makes the operation and chip removal of the machine tool very convenient.
The main shaft adopts Taiwan high-precision main shaft which contains Swiss SKF precision bearings.
The transmission part of the Lathe machine tool adopts high-precision Japanese THK/Taiwan HIWIN ball screws and high-speed linear slides from Japanese THK. The X-axis and Z-axis adopts high-rigidity linear slides, and the calculation of the optimal span between the track and the track is achieved. Low resistance, high rigidity, high precision, displacement speed up to 27m/min, improve work efficiency and shorten processing time.
Product Description
|
Item |
Unit |
CK36 |
CK46 |
|
|
Capacity |
Max swing over bed |
mm |
400 |
450 |
|
Max cutting diameter |
mm |
350 |
360 |
|
|
Max machining dia.(disk) |
mm |
135 |
135 |
|
|
Max machining dia.(shaft) |
mm |
220 |
220 |
|
|
Travel |
X axis travel |
mm |
750 |
950 |
|
Z axis travel |
mm |
270 |
290 |
|
|
Precision |
Spindle runout |
mm |
0.004 |
0.004 |
|
X/Z axis reposition precision |
mm |
0.002 |
0.002 |
|
|
Body structure |
Slant bed degree |
° |
45 |
45 |
|
Spindle |
Spindle speed |
rpm |
6000 |
6000 |
|
Chuck diameter |
inch |
5" |
6" |
|
|
Spindle nose |
A2-4 |
A2-5 |
||
|
Spindle bore |
mm |
46 |
56 |
|
|
Max bar diameter |
mm |
35 |
45 |
|
|
Hight between worktable and spindle |
mm |
70 |
70 |
|
|
Rapid speed |
X axis rapid speed |
m/min |
27 |
27 |
|
Z axis rapid speed |
m/min |
27 |
27 |
|
|
Motor power |
Spindle |
kw |
4.0 |
5.5 |
|
X axis feed motor |
kw |
1.1 |
1.7 |
|
|
Y axis feed motor |
kw |
1.1 |
1.7 |
|
|
Tool holder form |
Row of knives |
8 |
8 |
|
|
Tool size |
mm |
20*20 |
20*20 |
|
|
Boring bar diameter |
mm |
φ20 |
φ20 |
|
|
Other |
Dimension |
mm |
1800×1300×1600 |
2160×1600×1800 |
|
Weight |
kg |
1800 |
2600 |
Slant Bed Gang-Type CNC Lathe
1. The base and the bed are integrally cast iron, which has strong shock resistance and is not easy to deform.
2. The appearance design of the machine tool is beautiful, and it takes up less space.
3. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.
4. Work piece clamping method: hydraulic.
5. The hydraulic supply unit of the machine tool has an enlarged fuel tank, better heat dissipation, and more stable work.
6. The X-axis and Z-axis adopts high-rigidity linear slides, and the calculation of the optimal span between the track and the track is achieved.
7. Low resistance, high rigidity, high precision, displacement speed up to 27m/min, improve work efficiency and shorten processing time.
