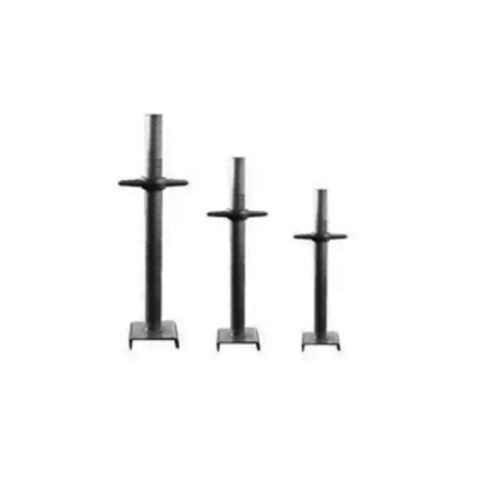

Scaffolding Leveling Base Jack

Scaffolding Leveling Base Jack

Diameter: 28/30/32/34/35/38/48MM etc

Length: 200/280/600/760MM

etc, or customized

Bottom size:

100*80*5MM100*100*5MM

120*120*5MM 150*150*5MM etc

or customized

Colour: Black

Material: Q235 steel

Surface treatment: black parts, hot dip galvanized, cold galvanized

Export packaging: pallet wire packing

Introduction: In the process of construction, it is used in conjunction with steel pipes and scaffolding to adjust the height of scaffolding and pipe racks, to balance and support heavy objects, and to bear weight.

Definition of Scaffold Jack Base

The construction screw is a transmission element with a helix, consisting of a screw and a nut. Its main function is to drive the nut to move up and down through the rotation of the screw rod, so as to realize the adjustment of the height and horizontal position of the building.

Function

Support Function: In large-scale construction projects such as buildings and bridges, construction threaded rods are often used to support structures. They can bear weight in both horizontal and vertical directions, ensuring the stability of buildings. Particularly in large buildings or bridge constructions, construction threaded rods can serve as the primary support structure, ensuring the safety and reliability of the structures.

Adjustment Function: Construction threaded rods are also used to adjust the height and horizontal position of buildings. During the construction or maintenance of a building, construction threaded rods are employed to fine-tune the building's height and horizontal position, ensuring precision and stability. Additionally, construction threaded rods can be utilized to control the tilt angle of buildings, thus maintaining their level orientation.

Application of construction screw in construction industry

In the construction industry, construction screw has been widely used in the construction, maintenance and renovation of buildings. For example, in the construction of high-rise buildings, the installed construction screw can bear the weight of the entire building, and at the same time can adjust the height and horizontal position of the building. In bridge repair work, the construction screw can be used to support the bridge and adjust the height and horizontal position of the bridge.

In a word, the construction screw plays an important role in the construction industry, it can not only support the building, but also adjust the height and horizontal position of the building. The use of construction screw can ensure the safety and reliability of the building, and can improve the efficiency of building construction.

Product use range: machinery industry, automobile industry, construction industry, railway, electronics industry, power plant
