Prestressed Mono Anchor With 2 Pcs Wedge

Prestressed Mono Anchor With 2 Pcs Wedge

Product Description

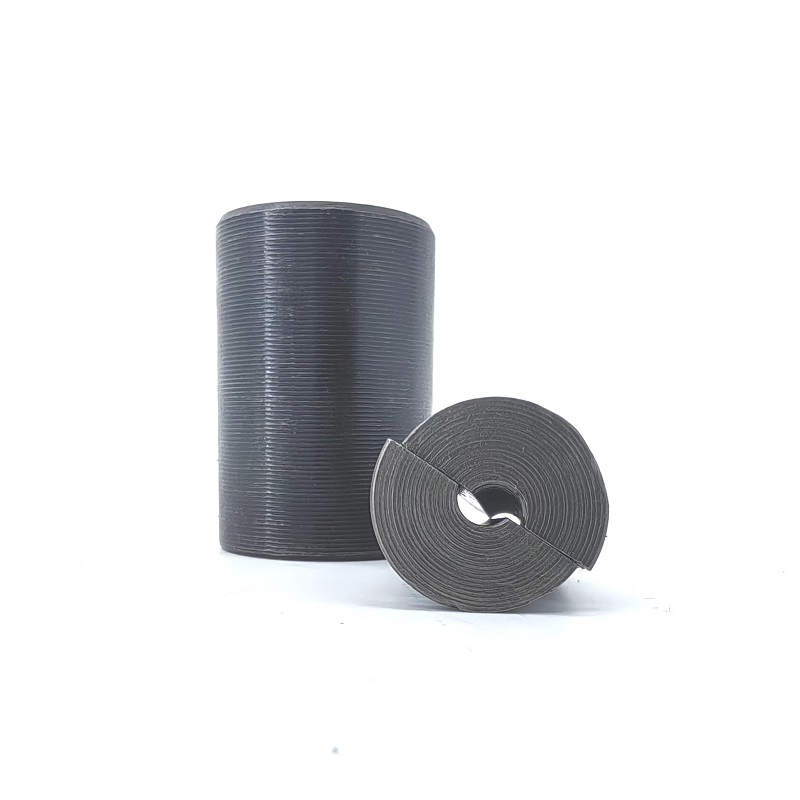

Prestressed Mono Anchors


Prestressed Mono Anchors are specialized anchoring systems used in construction and civil engineering projects. They consist of anchor components designed to secure and tension steel wire strands, which are commonly used in prestressed concrete structures. These anchors typically include components such as anchor heads, wedges, and bearing plates.

Ruiyi specializes in manufacturing Post Tension Slab, offering high-quality solutions for various applications. Our Prestressed Mono Anchors are meticulously designed and engineered to meet industry standards, with dimensions including Anchor Height of 35mm, Anchor Out Diameter of 23.8mm, Wedge Height of 32mm, and Weight Diameter of 21.4mm. Comprising durable materials, our Prestressed Mono Anchors are capable of providing reliable anchorage for steel wire strands, ensuring stability and safety in construction projects. Or as your demand,we also can provide customization service!

Ruiyi Prestressed Mono Anchors boast several key features that set them apart:

1. Versatility: With their compact design and robust construction, our Prestressed Mono Anchors are suitable for a wide range of applications, including bridge construction, building foundations, and infrastructure projects.

2. Comprehensive Support: We offer a complete solution by providing not only the anchors themselves but also compatible steel wire strands and other necessary accessories. Our comprehensive range of products ensures that our customers have everything they need for successful anchoring operations.

3. Customization Options: Recognizing that every project has unique requirements, we offer customization services to tailor our Prestressed Mono Anchor systems to specific project needs. Whether it's adjusting dimensions, materials, or configurations, we work closely with our clients to deliver personalized solutions that meet their exact specifications.


Ruiyi's commitment to quality, innovation, and customer satisfaction makes us a trusted partner for all your anchoring needs. Contact us today to learn more about our Prestressed Mono Anchor solutions and how we can support your next project.



Parameters of Post Tensioning Anchor

Anchor Type Product Code

Grout hole size

(mm)

Flat duct hole size(mm) Compatible Anchor Head Weight(KG) QTY(PCS)/Box

Compatible PC Strand(Dia)

Post Tensioning System RY153 17.0  78x20 2 holes*12.7mm
3 holes*12.7mm
2 500 12.7mm
Post Tensioning System RY197 17.0  50*23 2 holes*12.7mm
3 holes*12.7mm
2 500 12.7mm
Post Tensioning System RY210 21.0  78*22 3 holes*12.7mm
4 holes*12.7mm
5 holes*12.7mm
3 holes*15.2mm
4 holes*15.2mm
3.4 250 12.7&15.2mm
Post Tensioning System RY269 21.0  96*22
4 holes*15.2mm
5 holes*15.2mm
3.4 250 15.2mm
Post Tensioning System RY203 20.0  82*23
4 holes*15.2mm
3.8 250 15.2mm
