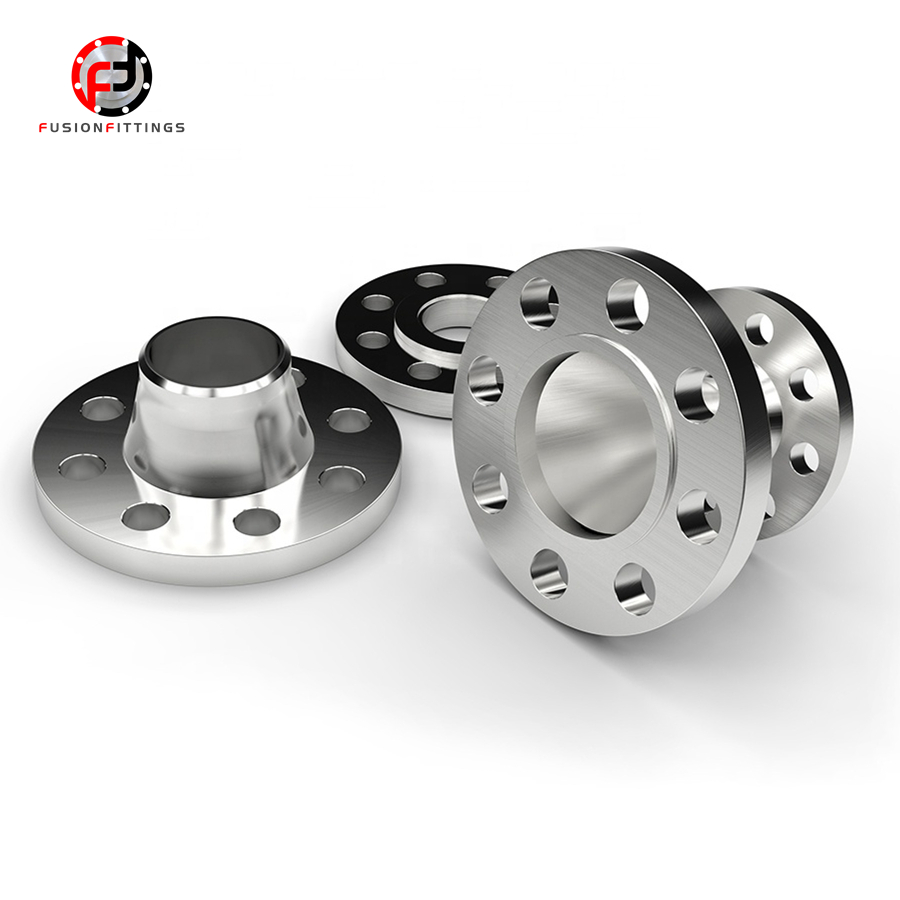

Carbon Steel Forged Weld Neck Flange

A carbon steel weld neck flange is a type of flange used in piping systems. It is made from carbon steel, which is a common and widely used material in various industries due to its strength and durability. The weld neck flange is specifically designed to be butt-welded to the pipe, providing a strong and leak-proof connection.

Description

Carbon steel weld neck flange is made of carbon steel with a forging process, It consists of a circular fitting with a protruding rim around the circumference. These flanges are typically butt welded to a pipe, the rim has a series of drilled holes that permit the flange to be affixed to another flange with bolts.

Design: A weld neck flange has a long tapered hub that is welded to the pipe, providing reinforcement and stability to the joint. The flange also has a flat, circular plate with bolt holes to connect it to another flange or equipment.

Welding: The flanges are designed to be welded to the pipe or fitting. The neck of the flange is welded to the pipe, creating a strong and leak-resistant connection.

Size Range: The flanges are available in a wide range of sizes to accommodate different pipe diameters and system requirements.

Applications: Carbon steel weld neck flanges are commonly used in industries such as oil and gas, petrochemical, power generation, and water treatment. They are suitable for high-temperature and high-pressure applications.

Advantages:

Provides excellent structural support and stability to the joint.

Reduces stress concentration at the base of the flange due to its tapered design.

Offers good resistance to corrosion and high temperatures when made from carbon steel.
