cage guided globe valve
Product Description
Cage Guided Globe Valve

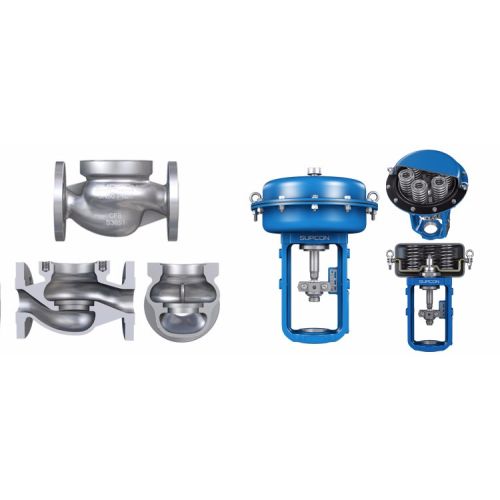

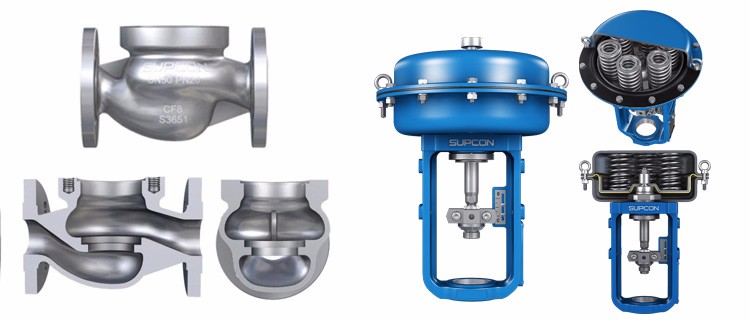

Cage Guided Globe Valve is TÜV ISO 15848 certified in 2019. It has a split sleeve construction and a high performance balanced seal ring seal. Suitable for fluid control in ambient and priming conditions. Bellows seal type is available. Thousands of applications in the fine chemical, petrochemical, pharmaceutical and other industries.
Performance advantages
Modular design concept, combining the American and Japanese schools of high-precision control and the German school of modular concept.
The inner cavity of the valve body is S-shaped distribution, smooth and without dead ends; there are guide wings inside the valve body, which can reduce the mutual force of the medium inside the valve body and reduce the occurrence of cavitation.
The use of sleeve guidance, large guide diameter, smooth guidance, with good dynamic stability.
The Cage Guided Globe Valve seat adopts floating design, while the sealing surface adopts tapered form to ensure good alignment of the sealing sub.
Sleeve window control flow characteristics, flow characteristics control accurately.
The structure of the inner part is balanced, allowing a large differential pressure, small operating force and large flow capacity.
Equipercent, linear and quick-open flow characteristics are available.
Good use in the temperature range of -80 to 593℃.
And pipeline connection with RF, RJ, FM and other flange type and SW, BW welding type.
The flange distance conforms to GB/T 17213.3-2005 / IEC 60534-3-1:2000; or ISA S75.03-1992 standard.
Long life
1. Valve Trims
According to the needs of the working conditions, different materials and surface hardening treatment can easily be chosen to meet the requirements of each function module of trim to improve its performance of the corrosion, cavitation and erosion resistant, lengthen service life.
2. Valve body
The body of Cage Guided Globe Valve consists of two passages from upper and lower, forming a shape like letter "S". The design of an elliptical section reduces the flow resistance and turbulent flow to keep the flow fluent. The flap in the middle of upper passage can reduce the eddy flow and increase the flow capacity.
