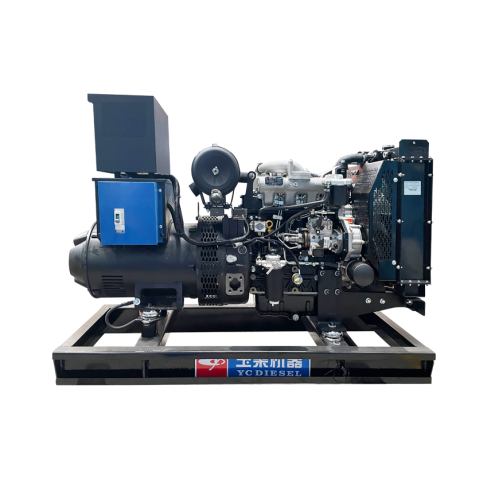

20KW Generator Set

20KW Generator Set

Product Description

YUCHAI YCV25

·The main structures, such as engine body, are time-tested, which ensuresthe high reliability of the whole engine.

·The design of integrated outlet water header pipe of cylinder head is adopt-ed, which reduces the sealing surface and improves sealing reliability.

·Leading and mature HPCR fuel system and high-efficient turbochargedintercooled technologies are adopted, which ensure precise control offuel-injection quantity and sufficient air intake; and the full combustion, lowfuel consumption and less emission of diesel engine under different loadconditions are ensured

·Good transient speed regulation and strong loading capacity , require-ments for Grade G3 generator set performance is satisfied.

Specifications

Open type:

1. The generator set has the functions of self-start, self-stop and self-switching

2. The control panel is an AMF LCD control panel, which displays voltage, current, frequency, water temperature, and oil pressure.

3. With low oil pressure, high water temperature, overspeed, and overload protection functions

4. The product has the advantages of high power, low fuel consumption, low noise, low emissions, easy starting, strong reliability, stable performance, simple operation, and convenient maintenance.

5. The supporting equipment has compact structure and flexible installation location;

6. The maintenance operation is simple, there are few people, and it is easy to maintain during the standby period.



Slience genset:

The noise reduction box generator set is equipped with a bottom fuel tank, an air inlet system, an air exhaust system, a highefficiency silencer, a smoke exhaust system, a unit operation door, a equipment access door, and a blinds. The exterior ismade of steel plate and the interior is made of high quality sound absorbing materials. The reasonable and environmentallyfriendly design can achieve the effect of noise reduction and shockproof, and the structure is very stable, which is convenientfor lifting and transferring, making it dificult to be damaged in a harsh environment. it can be designed as a fixed and trailermobile power station. The internal and external structural dimensions of the noise reduction box vary according to the sizeof the relevant main parts. The high performance and high standard of reasonable structure can be tailored according to thecustomer's site use and related requirements. product.



https://www.yuchaicm.com/electric-power-systems/

一、Main technical parameters:

model

ZC28GF1

Prime Power(kW)

20

Standby Power(KW)

22

voltage (V)

400/230

Current  (A)

36

Speed (r/min)

1500

Frequency(Hz)

50

Rated power factor

0.8

The generating set consumes electricity L/h

60

Steady state voltage deviation (%)

≤±2.5

Transient voltage deviation (%)

100%The sharp reduction power

≤+25

Sharp increase power

≤-20

Voltage recovery time (S)

≤1

Voltage unbalance degree(%)

≤1

Voltage modulation (%)

0.3

Frequency drop(%)

≤5

Steady state frequency band (%)

≤1.5

The relative frequency adjusts the drop range (%)

≥7.5

Relative frequency setting range of rise (%)

≥2.5

Transient frequency deviation (%)

100%sharp reduction   power

≤+12

Sharp increase power

≤-10

Frequency recovery time (S)

≤5

Relative frequency tolerance band %

2

Phase and connection

Three phase four wire

Start mode

Dc 24V electric starting

voltage regulating mode

Automatic

Cooling

Closed, water cooled

Excitation way

Brushless (AVR)

Engine modle

YUCHA   I YCDV254FHZ-35

Alternator modle

EVOTEC   TCU168F

Weight kg

55

Size  (L*W*H)MM

1350×600×920
