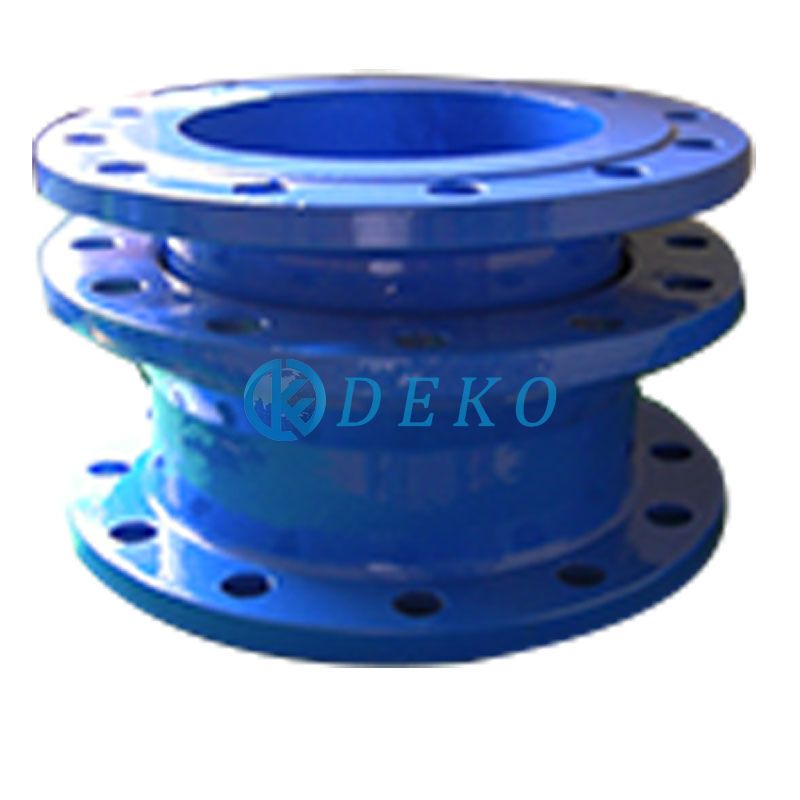

Loosing Puddle Flange

Details of Loosing Puddle Flange

1. Material: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083

2. Standard: EN545, EN598, ISO2531, BS4772, AWWA C110, AWWA C153, GB/T13295

3. Certificate: ISO9001, ISO14001, SGS, NSF, WRAS

4. Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test

5. Connection: DIN2576, BS4504 PN16, ANSI B16.5

6. Flange Drilling: PN10 / PN16 / PN25 according to BS4504

7. Internal Lining: Cement, conform to ISO4179/ Fishon Bonded Epoxy (FBE)

8. External coating: Zinc + Bitumen, conform to ISO8179/ Fishon Bonded Epoxy (FBE)/ Epoxy/ Bitumen

9. Usage: Jointed by the bolts, nuts and sealed by the gaskets

10. Note: the gaskets, bolts & nuts are supplied respectively as your special requirement

If you want to know more product details and preferential prices, please feel free to contact us!
