ADSS with The DN Short-span Tension Clamp

ADSS (All-Dielectric Self-Supporting) tension clamp is a device used to attach and support ADSS cables to poles or towers in overhead fiber optic cable installations. It is designed to grip the cable without damaging it while also providing the necessary tension to keep the cable taut and secure.

Tension Clamp

ADSS (All-Dielectric Self-Supporting) tension clamp is a device used to attach and support ADSS cables to poles or towers in overhead fiber optic cable installations. It is designed to grip the cable without damaging it while also providing the necessary tension to keep the cable taut and secure. The ADSS tension clamp is typically made of corrosion-resistant materials such as aluminum or plastic and is available in different sizes to fit various cable diameters.

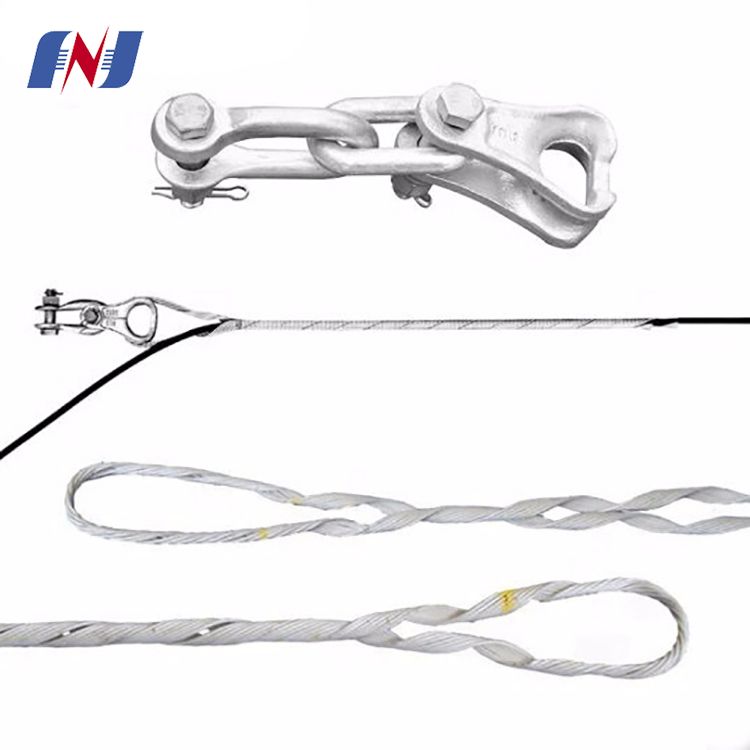

Composition: twisted wire, thimble, PH-type shackle, U-type shackle etc.

Purposes: support all strain, make ADSS cable connect the strain pole and tower.

Features:

Preformed wire connect the pole and tower by thimbles etc. link fitting, afford the load of the transmission line.

Grip strength not less than cable 95%RTS in case that not more than lateral pressure of the cable

E xcellent aluminum clad steel improve the mechanical and resist-corrosion function, extend life.

Corrosion-resistant materials such as aluminum or plastic to ensure durability and longevity.

Gripping mechanism that securely holds the cable without causing damage.

Tensioning mechanism that allows for adjustment of the cable tension.

Insulating material to protect the cable from electrical currents.

Suitable for use with a range of cable diameters.

Easy installation and maintenance.

Technical requirements: meet the DL / T 766-2003 ADSS with the preformed helical fittings technical requirements and test methods
