W-Beam Guardrail End Terminals energy-absorbing system

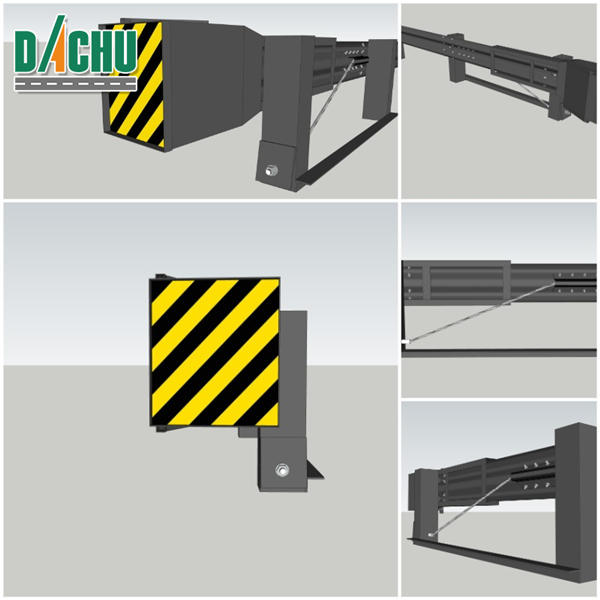

The Flared Energy‐Absorbing Terminal is an energy absorbing W-beam barrier end treatment. The Dachu's version is tested to NCHRP 350 TL‐2, TL‐3 criteria and designed to AASHTO highway specifications.
Product Description
The Flared Energy‐Absorbing Terminal is an energy absorbing W-beam barrier end treatment. The Dachu's version is tested to NCHRP 350 TL‐2, TL‐3 criteria and designed to AASHTO highway specifications.
W-Beam Guardrail End Terminals Product Parameters
|
Normal Sizes |
4318*310*82*2.67,5318*502*83*3.5 or can be customized |
|
Raw Material |
Q235B/Q355B (equivalent to S235JR/S355JR) |
|
Porfile |
W-beam; Thrie-beam |
|
Surface Treatment |
Hot Dipped Galvanized |
|
The Thickness of Galvanized |
550 g/m2 ;1100 g/m2 or as per your request. |
|
Test Level |
NCHRP 350 TL‐2, TL‐3 |
|
Relevant Parts |
Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal, Reflectors or according to your needs |
|
Application |
Roadside Safety |
W-Beam Guardrail End Terminals Working Principle
Both the vehicle and the end of the guardrail are deformable bodies, and the vehicle will collide forward to form a trajectory after impact. Once an accident occurs where the vehicle hits the W beam guardrail, the vehicle body itself will be damaged and destroyed, and the W-Beam Guardrail and Terminal end and Some other uncontrollable variables such as body friction on the ground can absorb part of the impact energy. Among them, if the W beam guardrail absorbs the impact energy of the vehicle better, the harm to the vehicle (including the occupants) will be less.
