13X HP Molecular Sieve
If you have any question on molecular sieve 13X HP Molecular Sieve. We will give the professional answers to your questions.
Product Description

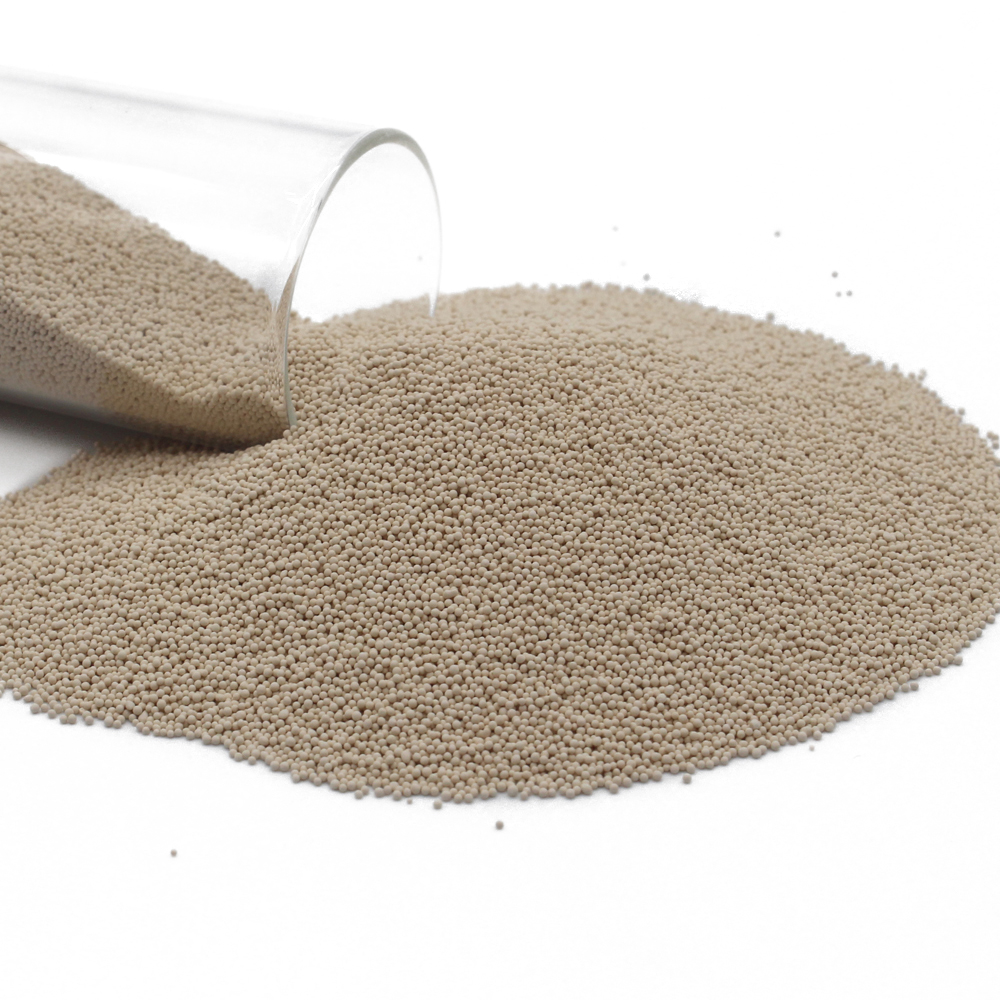

YAMTOP oxygen enrichment molecular sieve series are special used in PSA/VPSA system. 13X HP Molecular Sieve has good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. 13X HP Molecular Sieve is widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.
| Model | 13X HP Molecular Sieve | Lithium Based Molecular Sieve | ||
| Diameter | 0.4-0.8MM | 1.6-2.5MM | 0.4-0.8MM | 1.3-1.7MM |
| Bulk density | ≥0.62g/mL | ≥0.62g/mL | ≥0.63g/mL | ≥0.63g/mL |
| Crushing strength | / | ≥25N/piece | / | ≥11N/piece |
| Static N2 Adsorption (1bar, 25°C) | ≥8mL/g | ≥8mL/g | ≥22mL/g | ≥22mL/g |
|
N2/O2 Separation (1bar, 25°C) |
≥3 | ≥3 | ≥6.2 | ≥6.2 |
| Attrition | ≤0.3wt.% | ≤0.3wt.% | ≤1wt.% | ≤1wt.% |
| Moisture Content | ≤0.5wt.% | ≤0.5wt.% | ≤0.5wt.% | ≤0.5wt.% |
| Application | Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min | Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour |
Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min |
Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour |
| Purity | 93%±3% | 93%±3% | Over 93% | Over 93% |
The service lifetime of 13X HP Molecular Sieve in different devices
1, Air separation unit, 8-10 years
2, Petrochemical gas separation unit, 3-5 years
3, Natural gas processing unit, 5-8 years
4, Liquid product drying device, 1-3 years
5, General pyrolysis gas dryer, 3-5 years
6, Hydrogen dryer, 7-8 years
The method of extending the service life for the 13X HP Molecular Sieve is the proper use and maintenance of molecular sieves. The molecular sieve adsorption process should be strictly operated in accordance with the design value of adsorption equipment, key indicators such as flow, temperature, pressure, system switching time should not arbitrarily change.
Handle & Storage:
13X HP Molecular Sieve should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
Regenaration:
YAMTOP molecular sieve can be regenerated by either heating in the case of thermal swing process or by lowering the pressure in the case of pressure swing process. Put the 13X HP Molecular Sieve in a vacuum muffle furnace for 1 hour at 550℃.
Get a free quote from the Molecular Sieve Manufacturer - Yamtop. We look forwards to building business relationship with you in the future.
