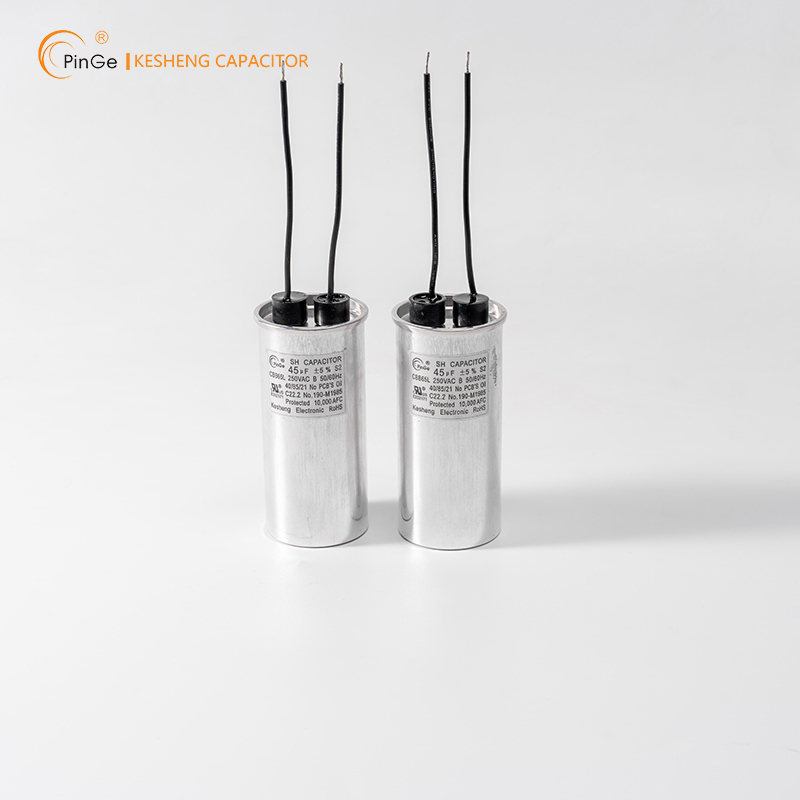

CBB65 Lead Wire Type Capacitor

Product Description

CBB65 Motor Run and Start AC Capacitors
■ Non-inductance winding structure
■ Excellent self-healing performance
■ Small equivalent series resistance
■ Fast heat dissipation，Low temperature rise
■ Corrosion resistant，Stable performance，high reliability
■ Safety, fire and explosion protection

CBB65 Motor Run Capacitors Typical applications

It is mainly suitable for starting and running single-phase AC motors such as washing machine, air conditioner, water pump and shredder. And AC filter circuit for power electronic equipment and UPS power supply.

Specification

Reference standards	GB/T3667.1, UL810, EN60252-1
Rated voltage UN	250~500 VAC
Rated capacitance CR	2~100uF
Capacitance tolerance	± 5 %
Operating temperature	-25/70℃; -40/70℃; -40/85℃; -40/105℃
Storage temperature	-40 / 70℃
Dissipation factor (DF)	20 x 10-4 at 20°C, 50 Hz
Insulation resistance(IR)	≥2000MΩ .μF (500Vdc,60s)
Voltage test between terminals (Ut-t)	2 x UN for 5 s
Voltage test between terminals with case	2200 Volt for 2 s
Expected life	CLASS B - 10000 hours CLASS C - 3000 hours
Dielectric material	Metalized polypropylene film
Terminal	Wires
Case	Aluminum
Filling	Oil
Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.
