mobile tower crane

Tower crane is widely used in building construction projects. It is mainly used to handle construction materials vertically and horizontally.

Product Description

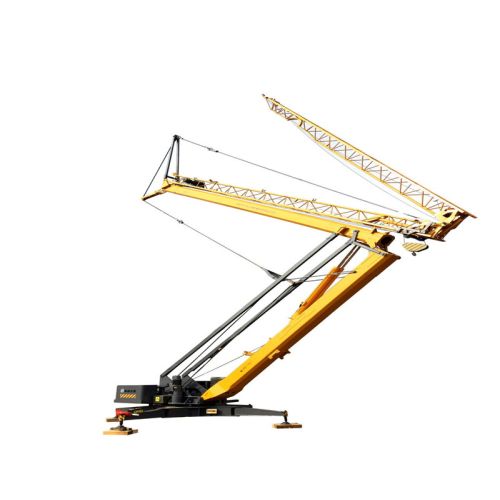

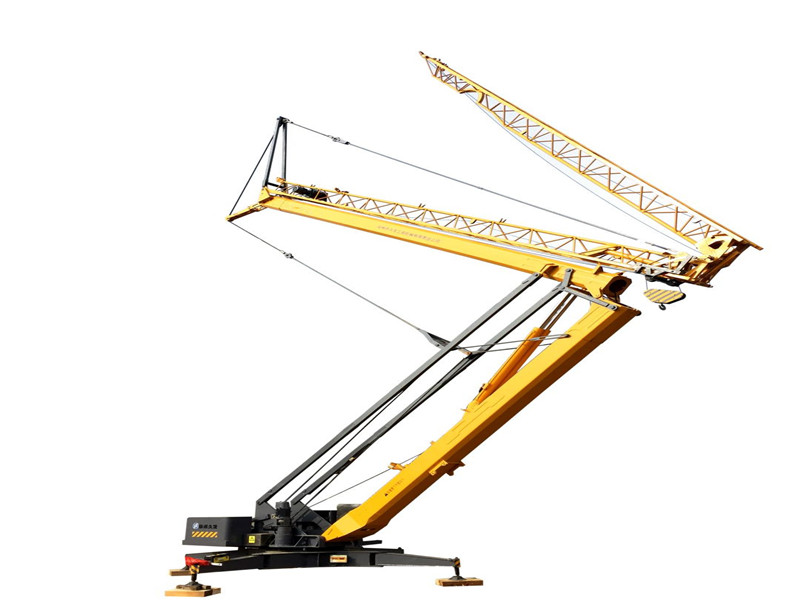

mobile tower crane, also known as a mobile tower or a self-erecting tower crane, is a type of crane that is designed to be easily transported and quickly assembled on job sites.

Unlike traditional tower cranes that require large trucks and significant assembly time, a mobile tower crane is self-contained and can be towed to the job site on a trailer. Once on-site, the crane can be set up in a matter of hours, with the mast and jib sections being erected using hydraulic systems. The crane can also be disassembled and transported to a new job site just as quickly.

Mobile tower cranes typically have a small footprint and are designed for use in tight urban spaces where traditional tower cranes would be impractical. They are often used in the construction of high-rise buildings, as well as in industrial and infrastructure projects. Due to their mobility and ease of setup, they are often preferred for short-term or smaller projects, or where a larger crane is not practical or possible to use.

1. Features of our mobile tower crane.



1) No need concrete foundation;

2) Remote control;

3) Easy to erect;

4) Easy to transport.

mobile tower crane

2. Specifications of our mobile tower crane.

1) SMMTC-1 mobile tower crane

 mobile tower crane

Max. Lifting load

1ton at 10m working

Max.working height

17m

Max.working radius

20m

Total power

11.4kw

Outrigger span

3.5*3.5(m), lead screw outriggers

Max. towing speed

15km/h

Total weight

14500kg

Balance weight

Fixed, appro 6000kg

Container need

1*40HQ

Power supply

380v 50hz 3p (Please tell us in advance if y our power is different)



2) SMMTC-2 mobile tower crane

mobile tower crane

Max. Lifting load

2 ton at 10m working

Max.working height

25m

Max.working radius

27m

Total power

23.1kw

Outrigger span

4.2*4.2(m), lead screw outriggers

Max. towing speed

15km/h

Total weight

24000kg

Balance weight

movable, 3 boxes

Container need

1*45HC

Power supply

380v 50hz 3p (Please tell us in advance if y our power is different)

Tower crane is widely used in building construction projects. It is mainly used to handle construction materials vertically and horizontally.

Traditional tower crane needs huge concrete foundation. It is usually used in high-rise building project to handle large amount of construction materials efficiently within a large working range.

But there are also huge demands for portable tower cranes in developing countries. There are a lot of low-rise building projects where they just need tower crane with relatively lower handling capacity, efficiency and budget. To meet the demands of market, we developed our mobile tower crane.
