Steel Plywood Standard Wedge Bolt for X Flat Tie
Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place.
Product Description
Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.
Steel Plywood Standard Wedge Bolt For X Flat Tie
The avaliable size from 4" to 48" wall thickness as your request.

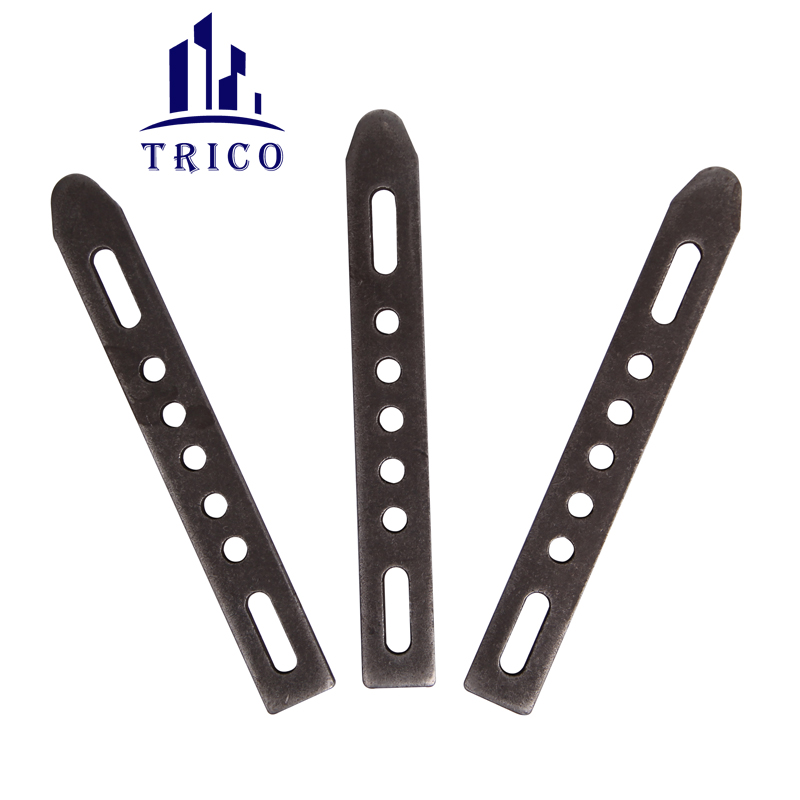

| Picture |
Product Name |
Wall Thickness |
Weight (g) |
Weight (LBS) |
Ultimate Load |
Packaging |
|
|
X-FLAT TIE | 4" | 103.98 | 0.2292 | 6000LBS |
100pcs/carton； 10,000pcs/pallet |
| 5" | 111.9 | 0.2467 | ||||
| 6" | 119.81 | 0.2641 | ||||
| 8" | 141.21 | 0.3113 | ||||
| 9“ | 151.91 | 0.3349 | ||||
| 10” | 162.61 | 0.3585 | ||||
| 12“ | 184.01 | 0.4057 | ||||
| 14” | 205.41 | 0.4528 |
50pcs/bundle； 2,500pcs/pallet |
|||
| 15“ | 216.11 | 0.4764 | ||||
| 16” | 226.81 | 0.5000 | ||||
| 18“ | 248.21 | 0.5472 |
50pcs/bundle； 2,500pcs/pallet |
|||
| 20” | 269.61 | 0.5944 | ||||
| 22“ | 291.01 | 0.6416 | ||||
| 24” | 312.42 | 0.6888 | ||||
| ... | ... | ... | ... | |||
| 48“ | 569.22 | 1.2549 |
25pcs/bundle； 2,500pcs/pallet |
Accessories
| Picture | Product Name | Material | Weight | Surface Treatment | Packaging |
 |
Standard Wedge Bolt |
45# Steel |
52g |
heat treatment |
500pcs/pail then put on pallet |
 |
Long Wedge Bolt |
71g |
250pcs/pail then put on pallet |
Related Produts:
Wedge bolts connect panels and ties together, eliminating the need for special tools or equipment in the set up process. Two identical wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachments, scaffold brackets, etc.
X Flat Ties are used with Wedge Bolts to secure and space modular forms. X Flat ties are available in 6″ up to 84″ in 1/2″ increments. Standard breakback is 1/4″.
One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.
Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms. The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.
Turnbuckle Form Aligner Lumber forms (also refers to as kickers) which brace and support the fully assembled wall from the fluid pressure of the concrete.
