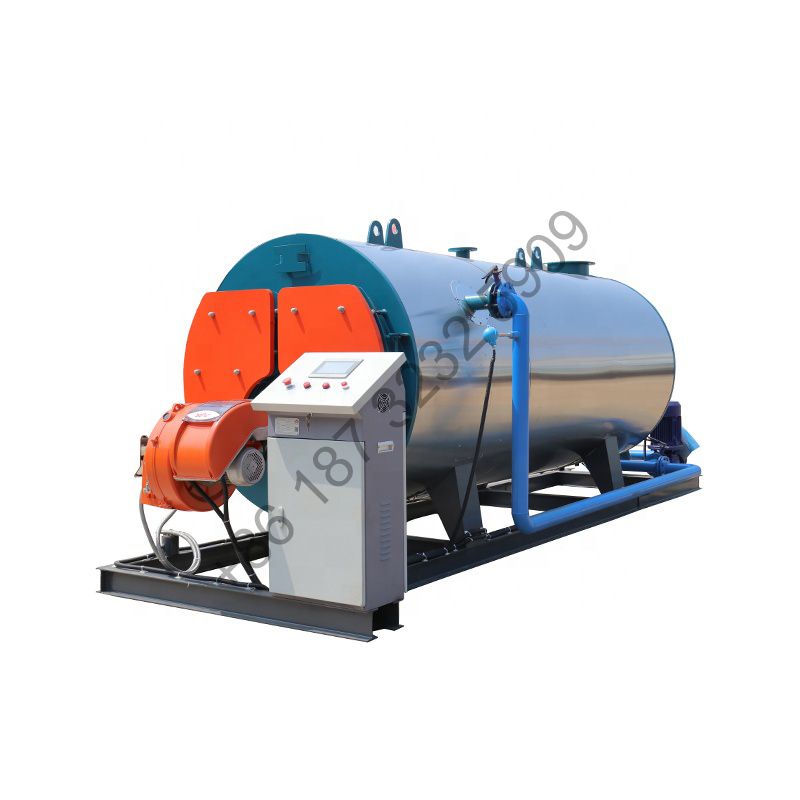

CWNS Gas Boiler
CWNS Gas Boiler
Product Description
Floor standing gas boiler adopts advanced shell type & three-returns wet-back structure, which consists of boiler body, connecting flue, deaerator pump, deaerator, burner, steam-water system, instruments, economizer, etc. Most prominent feature of the hot water boiler is low nitrogen, the nitrogen oxide emissions is under 30mg/m³ during boiler operation. With the characteristics of compact structure, beautiful outlook, simple operation, safe and reliable operation, floor standing boilers have been widely used in many different industries.
|
TYPE: |
CWNS0.35-0/85/60-Q |
CWNS0.7-0/85/60-Q |
CWNS1.05-0/85/60-Q |
CWNS1.4-0/85/90-YQ |
|
RATED POWER: |
0.35MW |
0.7MW |
1.05MW |
1.4MW |
|
RATED HEAT: |
30*10000kcal/h |
60*10000kcal/h |
90*10000kcal/h |
120*10000kcal/h |
|
PRESSURE: |
0 MPA |
0 MPA |
0 MPA |
0 MPA |
|
WATER OUT/IN : |
85℃/60℃ |
85℃/60℃ |
85℃/60℃ |
85℃/60℃ |
|
THERMAL EFFICIENCY : |
93-96% |
93-96% |
93-96% |
93-95% |
|
CONDENSER EFFICIENCY: |
96-103% |
96-103% |
96-103% |
96-103% |
|
GAS CONSUPTION : |
40 NM2/H |
70 NM2/H |
110 NM2/H |
140 NM3/H |
|
WATER OF 50℃ OUTPUT: |
7TON/H |
13TON/H |
20TON/H |
26TON/H |
|
OUTSIZE: |
2280*1090*1320MM |
2715*1280*1560MM |
2925*1500*1655MM |
3500*2000*2100MM |
|
USD FOB XINGANG: |
8400 |
12200 |
14700 |
17200 |
Advantages of floor standing gas boilers
• Adopted aluminum silicate fiberboard as heat preservation material, with good heat preservation performance, light weight and convenient transportation and installation
• The front and rear smoke boxes adopt the integral opposite door structure, which is beautiful and elegant, with superior performance, sealed well, and opened easily
during maintenance.
• Adopted original imported burner with high automation. Realized full automatic control of pre-purge, ignition, automatic conversion of fire power, automatic boiler
shutdown and flameout protection.
• Equipped with complete automatic control device and safety protection device, with high and low water level alarm and low water level interlock protection function.
• Boiler automatic ignition, burner fire automatic regulation and flameout protection, to ensure the safe operation of the floor mounted condensing boiler.
• Equipped with manhole device on upper part and inspection device on lower part of free standing gas boilers, easy maintenance.
• Equipped with water level gauge, water level control alarm, pressure gauge, pressure controller and gas and water flow meters, fully meet the monitoring and control
requirements, with first-class safety.
• The application of FGR flue gas recycling technology effectively reduce the content of nitrogen oxides and make the emission of nitrogen oxides below 30mg / m³, which is far lower than the national standard.
