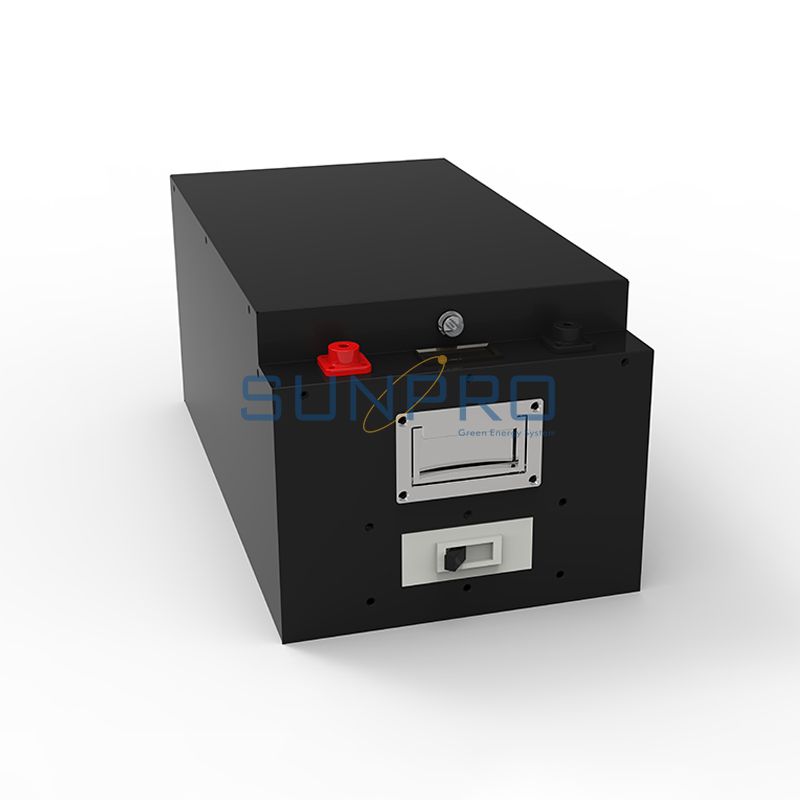

LFP 51.2V 100AH Lithium Battery

SUNPRO LiFePO4 Battery Pack 51.2V 100Ah-Standard

Model Number

SPRO-GLST512100

Cell Type

LiFePO4, Prismatic 100AH, 16S1P

Energy

5.12KWH

Nominal Capacity

100Ah

Nominal Voltage

51.2V

Voltage range

43.2V-58.4V

BMS (Battery Management System)

Built-in BMS-16S-150A

Charge Current

100A (Max 150A)

Continuous Discharge Current

150A

Peak Discharge Current

300A (≤2S)

SOC LCD Display

YES

Communication Port

RS485/RS232/CAN

Battery Case

SPCC/Metal

Dimension

570*330*270mm (Customizable/OEM supported)

Net Weight

Approx. 48kg

Operating temperature

Charging: 0°C- 55°C

Discharging: -20°C- 55°C

Storage temperature

Around -20°C – 35°C

Standard environmental condition

Temperature：25±2℃

Humidity: 45-75%RH

Atmospheric Pressure: 86-106 KPA

Cycle Life (@0.2C rate/25°C)

Approx. 4000 times

Warranty (from shipping date)

36 months

Can be used with Inverter

7500W

Applications/Used at

Residential/Commercial solar power system
