Product Description

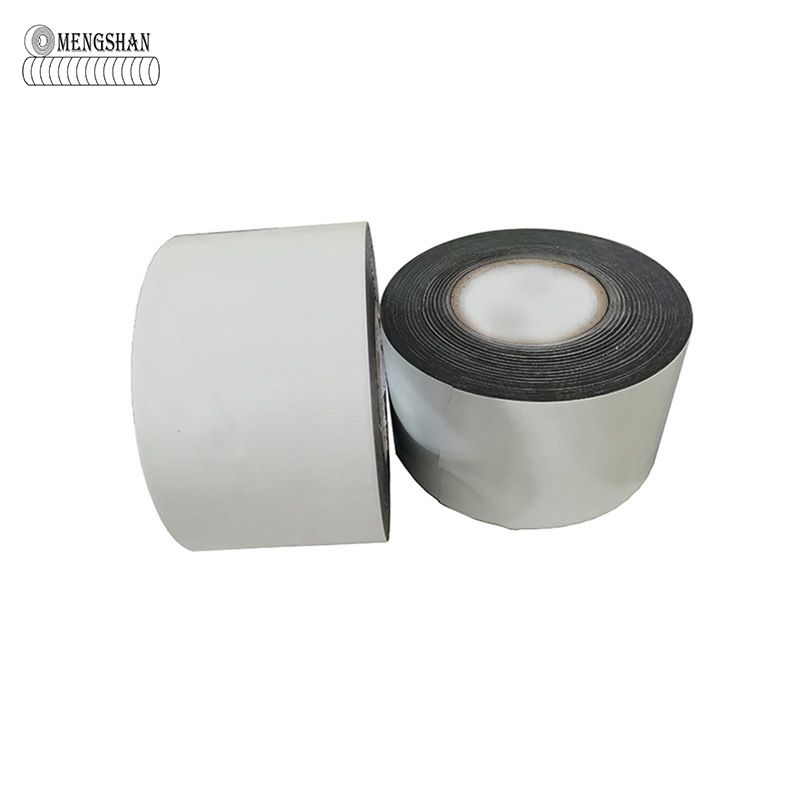

PE Mechanical Protection Outer Tape Description
The MENGSHAN® 955 PE Mechanical Protection Outer Tape is cold applied tape coating system for the protection of steel pipelines. The outer mechanical protection tape consists of a polyethylene backing and a butyl rubber adhesive layer. The PE Mechanical Protection Outer Tape is engineered to assure a high bond to the MENGSHAN® 1019, 1027 primed surface with excellent conformability. It shall be applied after primer and before outer mechanical protection tape.
Features of Mechanical Protection Outer Tape
● Resistant to soil stress
● Cold applied
● Excellent adhesion to pipe and self
● Low cathodic protection
● Long-term in-ground performance
● Serve for low-high temperatures
Structure
Backing: Special blend of stabilized polyethylene
Adhesive: Butyl rubber and Adhesion Promoting Resins
Color: Black , White
Properties
|
PRODUCT PROPERTIES |
TEST METHOD |
TYPICAL VALUE |
|||
|
MENGSHAN 955-15 |
MENGSHAN 955-20 |
MENGSHAN 955-25 |
MENGSHAN 955-30 |
||
|
Total Thickness |
|
15mil(0.381mm) |
20mil(0.508mm) |
25mil(0.635mm) |
30mil(0.762mm) |
|
Backing of PE Film |
|
10mils(0.254 mm) |
15mil(0.381mm) |
20mil(0.508mm) |
25mil(0.635mm) |
|
Butyl Rubber Adhesive |
|
5 mils(0.127 mm) |
5mil(0.127mm) |
5mil(0.127mm) |
5mil(0.127mm) |
|
Tensile Strength |
ASTM D1000 |
50N/cm |
60N/cm |
70 N/cm |
80 N/cm |
|
Elongation |
ASTM D1000 |
300% |
350% |
350% |
450% |
|
Peel Adhesion to Primed Steel |
ASTM D1000 |
24 N/cm |
25 N/cm |
26.5 N/cm |
33 N/cm |
|
Water Vapor Transmission Rate |
ASTM E 96 |
0.10g/m2 |
0.10g/m2 |
0.08g/m2 |
0.06g/m2 |
|
Water absorption At+23℃ |
ASTM D570 |
0.10% |
0.10% |
0. 08% |
0. 06% |
|
Volume Resistivity |
ASTM D 257 |
2.0x1015 ohm.cm |
2.5x1015 ohm.cm |
2.5x1015 ohm.cm |
2.5x1015 ohm.cm |
|
Dielectric Strength |
ASTM D149 |
30 kv |
36 kv |
43 kV |
45 kV |
|
Application Temperature |
-20 To +70℃ |
||||
|
Max Serve Temperature |
-40 To +80℃ |
||||
|
Recommended Primer |
P1019, P1027 |
||||
