60LBS RAIL 60LB/YD RAIL ASCE 60

The 60LBS RAIL is typically used for light cargo or light rail transit lines, but can also be used for less frequently used rails. The 60 lbs rail is produced according to the American ASCE standard ASTM A1 and is mostly used in North America. 60 lbs rail can also be called 60-pound rail, which weighs 60 pounds per yard. The 60 lbs rail weight per meter is 29.8kg, equivalent to 29.8kg/m.

Product Description

PRODUCT PARAMETERS

The 60LBS RAIL is typically used for light cargo or light rail transit lines, but can also be used for less frequently used rails. The 60 lbs rail is produced according to the American ASCE standard ASTM A1 and is mostly used in North America. 60 lbs rail can also be called 60-pound rail, which weighs 60 pounds per yard. The 60 lbs rail weight per meter is 29.8kg, equivalent to 29.8kg/m.

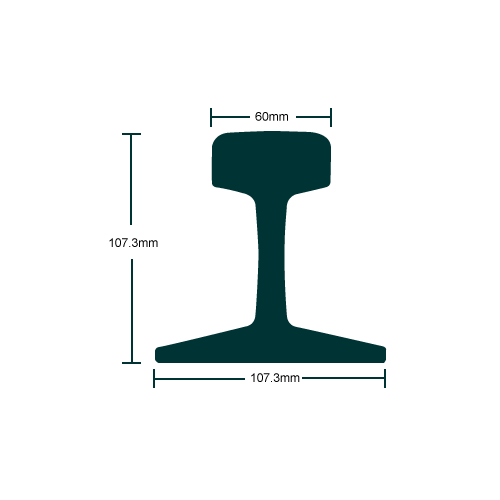

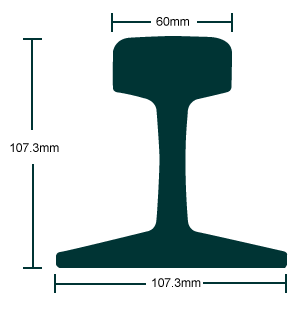

60 LBS Rail Specification & Drawing

60LBS RAIL



The 60LBS Rail is engineered to withstand heavy loads and provide long-lasting performance in a variety of applications. ASCE 60 Rail features a standardized profile, known as ASCE 60, which ensures compatibility with existing rail networks and facilitates seamless integration into railway infrastructure.



With a weight of 60 pounds per yard, the 60LBS Rail offers excellent load-bearing capacity, making it suitable for both freight and passenger transportation. Its sturdy construction and precise engineering enable it to handle the demands of high-traffic environments with ease, providing a smooth and reliable ride for passengers and efficient movement of goods.





Rail Type:

60 LBS Rail (ASCE 60 Rail)
Nominal Weight(lbs/yd) 60
Standard Length 20', 30', 33' & 40'
Standard Drilling: 2-1/2''×5'' with 15/16'' dia. holes
Rail Joint Length: 20''
Rail Joint Weight: 13 lbs/pr with hardware: 16 lbs/pr
Rail Bolt: 3/4''×4''



Whether used in mainline tracks, sidings, industrial spurs, or other rail applications, the 60LBS Rail delivers optimal performance. Its strength and durability make it an ideal choice for heavy-haul operations, where reliable rail infrastructure is crucial for the safe and efficient transport of large quantities of freight.



YONGYANG is dedicated to providing top-quality rail solutions, and the 60LBS Rail is no exception. Each ASCE 60 Rail undergoes stringent quality control measures to ensure compliance with industry standards and specifications, ensuring its reliability and longevity.



60 LBS Rail(ASCE 60 Rail) Dimension in mm



Type Head Width(mm) Rail Height(mm) Base Width(mm) Web Thickness(mm) Weight(kg/m)
60 LBS Rail(ASCE 60) 60.32 107.95 107.95 12.3 29.76



By choosing the 60LBS Rail, you can expect enhanced operational efficiency, reduced maintenance needs, and improved overall rail performance. Its compatibility with standard rail systems and proven track record make it an excellent investment for rail operators and infrastructure developers.



Partner with us to experience the reliability and durability of the 60LBS Rail in your rail projects. CONTACT US TODAY to discuss your specific requirements and discover how our high-quality rail solution can contribute to the success of your rail transportation operations.





Some Common American Rail Sizes on Sale



60LBS RAIL is one of light rail, we also have 25lbs rail, 30lbs rail, 45lbs rail, tr45 rail, tr50 rail, 115re rail, 136re rail in stock.



60LBS RAIL



We can supply LIGHT RAILHEAVY RAIL and CRANE RAIL as per your requirement.



Strong Strength Railroad Track Manufacturer-YONGYANG RAIL



As a quality railroad equipment supplier, YONGYANG enjoys a good reputation in China and around the world. We can provide various sizes of high-quality American standards to meet your needs. All products are sold at factory wholesale prices and are fully stocked to meet customers' shipping needs. Please recognize the strong manufacturer YONGYANG RAIL for purchasing rail.

60LBS RAIL

Looking forwards to receive your valuable inquiry of rail.
