Liquid Tight Flexible Metal Conduit - PCULTG Series (UL 360)

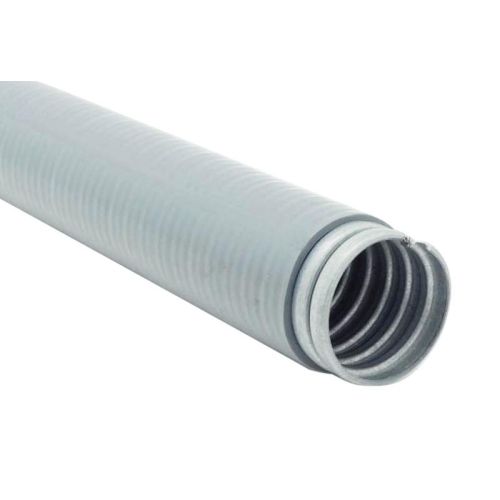

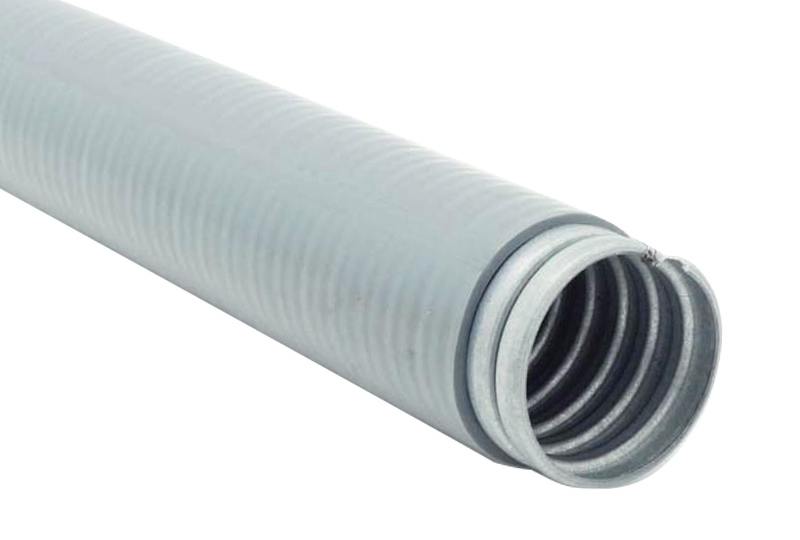

Liquid Tight Metal Flexible Conduit-cULus series is certified with the standard UL360 & CSA C22.2 No.56 for full trade size and consist of metal flexible conduit made by continuous wound galvanized steel strip and PVC jacket featuring with water proof and fire retardant.
Product Description
Product Description
Liquid Tight Metal Flexible Conduit-cULus series is certified with the standard UL360 & CSA C22.2 No.56 for full trade size and consist of metal flexible conduit made by continuous wound galvanized steel strip and PVC jacket featuring with water proof and fire retardant.
Liquid Tight Metal Flexible Conduit-cULus series is certified with the standard UL360 & CSA C22.2 No.56 for full trade size and consist of metal flexible conduit made by continuous wound galvanized steel strip and PVC jacket featuring with water proof and fire retardant. All materials are compliant with RoHS standard and the galvanized steel strip is also corrosion resistant. Trade sizes 3/8” to 1-1/4” are made with a bonding strip and 1-1/2” to 4” shall be equipped with additional grounding device to meet with the regulation of electrical code. The superior mechanical performance of flexible metal conduit and reliable physical & chemical characteristics of plastic jacket answer to the CSA C22.2 No.56 standard. This series of liquid tight flexible conduit is especially applicable for the occasions in lower temperature. It is also the best solution for closed spaces, indoor or outdoor environments with severe conditions. The best efficiency of water proof for whole wiring system is available to achieve by adopting the liquid tight fitting series S50 to S53.
Material：Galvanized Steel + PVC Jacket
Temperature Range: -30℃~+75℃ Dry, 60℃ Wet, 75℃ Oil
IP Rating: IP 66 (Fit with connector series: S50, S53)
Jacket Color: Grey (Standard), other colors are available by consult.
Flexibility: Medium
Fire Retardant: Self-extinguishing
UV Resistance: Yes
RoHS Compliance: Yes
Certificate: cULus
Suitable for use in Hazardous (Classified) Locations :
NEC Article 501.10 (B) (2) & 501.30 (B) Class I Div. 2
NEC Article 502.10 (A) (2) & 502.30 (B) Class II Div. 1; 502.10 (B) (2) Class II Div. 2
NEC Article 503.10 (A) (2) & 503.30 (B) Class III Div. 1; 503.10 (A) (2) Class III Div. 2
| Nominal Conduit Size (mm) | Nominal Conduit Size (inch) | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package / Roll (ft/m) | Measurement(LxWxH mm) |
|---|---|---|---|---|---|---|---|
| 12 | 3/8 | PCULTG1 - 3/8 | 12.29 ~ 12.80 | 17.50 ~ 18.00 | 60.8 | 100 / 30.5 | 440 * 440 * 140 |
| 16 | 1/2 | PCULTG1 - 1/2 | 15.80 ~ 16.31 | 20.80 ~ 21.30 | 92.55 | 100 / 30.5 | 440 * 440 * 160 |
| 21 | 3/4 | PCULTG1 - 3/4 | 20.83 ~ 21.34 | 25.20 ~ 26.70 | 117.95 | 100 / 30.5 | 500 * 500 * 180 |
| 27 | 1 | PCULTG1 - 1 | 26.44 ~ 27.08 | 32.80 ~ 33.40 | 175.1 | 100 / 30.5 | 600 * 600 * 300 |
| 35 | 1 - 1/4 | PCULTG1 - 1 - 1/4 | 35.05 ~ 35.81 | 41.40 ~ 42.20 | 213.2 | 50 / 15.3 | 750 * 750 * 130 |
| 41 | 1 - 1/2 | PCULTG2- 1- 1/2 | 40.01 ~ 40.64 | 47.40 ~ 48.30 | 238.6 | 50 / 15.3 | 750 * 750 * 250 |
| 53 | 2 | PCULTG2- 2 | 51.31 ~ 51.94 | 59.40 ~ 60.30 | 292.6 | 25 / 7.6 | 900 * 900 * 120 |
| 63 | 2 - 1/2 | PCULTG2- 2- 1/2 | 62.99 ~ 63.63 | 72.10 ~ 73.00 | 381.3 | 25 / 7.6 | 1000 * 1000 * 150 |
| 78 | 3 | PCULTG2- 3 | 77.98 ~ 78.74 | 87.90 ~ 88.90 | 454.5 | 25 / 7.6 | 1100 * 1100 * 180 |
| 103 | 4 | PCULTG2- 4 | 101.60 ~ 102.62 | 113.30 ~ 114.30 | 619.6 | 25 / 7.6 | 1125 * 1125 * 230 |
