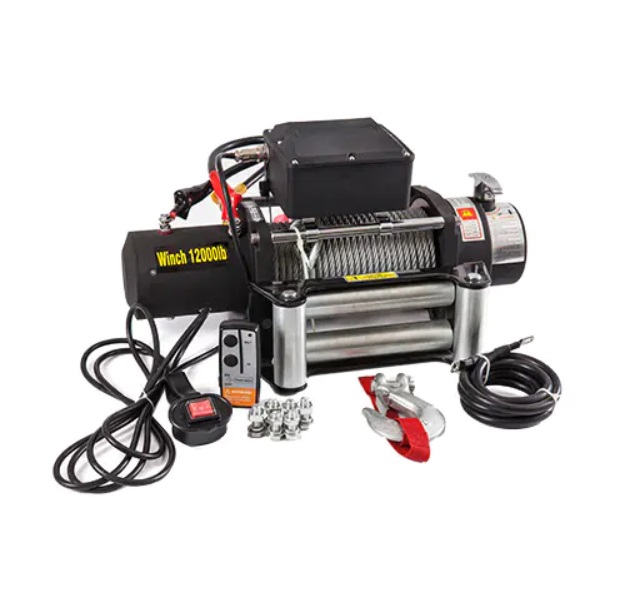

HIGH PULLING FORCE OFF ROAD WINCH-SC12.0X WIRE ROPE
HIGH PULLING FORCE OFF ROAD WINCH-SC12.0X WIRE ROPE
Product Description
12000lb 4x4 winch, 12V or 24V.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
Sliding ring gear clutch system with guide teeth allows engagement and disengagement smoother.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every Electric winch is tested on pulling capacity and function.
| Specification | |
| Rated line pull | 12000lb (5443kg) single line |
| Rated line pull | 6.6hp/4.85kw,series wound 12V |
| Control | Remote switch, 12ft (3.7m) lead |
| Remote Control | Included |
| Gear train | 3 stage planetary |
| Gear reduction ratio | 217:1 |
| Clutch | Sliding ring gear |
| Braking | Automatic load-holding brake |
| Drum size | Ø2.5″*L8.8″ (Ø63.5mm*L224mm) |
| Cable | Ø9.1mm*28m |
| Fairlead | 4-way roller fairlead |
| Wireless Remote control | Optional |
| Battery recommended | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72" (1.83m) |
| Finishing | Black, dark grey coating |
| Overall dimension (L*W*H) | 526.3*160*179mm |
| Mounting bolt pattern | 254*114.3mm |
| 12000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) | ||
| Line pull lb(kg) | Line speed ft/min(m/min) | Current(A) |
| 0 | 34.4(10.82) | 67 |
| 2000(907) | 20.6(6.28) | 131 |
| 4000(1814) | 15.19(4.63) | 198 |
| 6000(3310) | 12(3.66) | 261 |
| 8000(3629) | 9.84(3.0) | 320 |
| 10000(4536) | 8.07(2.46) | 350 |
| 12000(5443) | 7.15(2.18) | 390 |
| 12000LBS LINE PULL AND CABLE CAPACITY | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line | Lbs | 12000 | 9210 | 8030 | 6894 |
| pull per layer | Kgs | 5443 | 4178 | 3642 | 3123 |
| Cumulative | Ft | 21.3 | 40 | 72 | 92 |
| Cable capacity | M | 6.5 | 12 | 22 | 28 |
| Weight and Package | |
| Net Weight | 35KG |
| Gross Weight | 36KG |
| Package | Foam carton 60x34x25cm |
