ARM embedded Rockchip SOM RK3588 Android Ubuntu AIOT core board
The SOM core board is the main component of a SOM based system.It contains the essential components required for the system to function, such as the CPU, RAM, and flash memory.
Product Description
ARM embedded Rockchip SOM RK3588 Android Ubuntu AIOT core board
Product Description

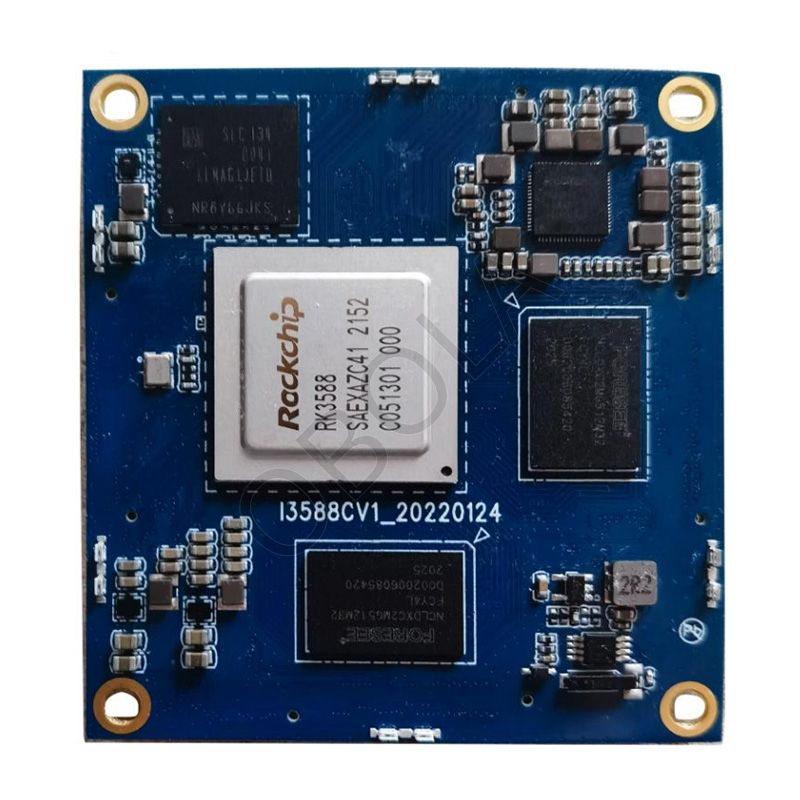

Model: i3588CV1
Optional configuration: RAM(LPDDR4)+ROM(eMMC) 4+16G and 8+32G
The SOM core board is the main component of a SOM based system.It contains the essential components required for the system to function, such as the CPU, RAM, and flash memory. The Core Board is designed to be inserted into a larger carrier board or baseboard, which provides additional functionality and interfaces specific to the application requirements.
The purpose of using a SOM Core Board is to simplify the development process of embedded systems. By using a pre-designed and pre-tested Core Board, developers can focus on designing the application-specific functionalities and peripherals on the carrier board, rather than spending time on the complex hardware design of the entire system.
Features of SOM Core Board
● Advanced 8nm processing, Rockchip new generation AIOT chip, 8K universal SoC.
● 8-cores ARM Framework, CPU 4*A76@2.4GHz & 4*A55@1.8GHz.
● Quad-Core GPU Mali-G610
● NPU 6TOPS AI computing power, support INT4/INT8/INT16 hybrid operation, support TensorFlow/MXNet/PyTorch/Caffe etc network model.
● 8K Encoder/Decoder Exploring, 8K@60fps H.265/VP9 video decoding & 8K@30fps H.265/H.264 video encoding, support decoding & encoding simultaneously, Max 32 1080P@30fps decoding &16 1080P@30fps encoding, HD 8K pictures。
● 8K display, Max 8K@60Hz, Can create a more realistic visual impression.
● Support HDMI2.1, EDP1.3, MIPI-DSI, DP1.4, BT.1120 multi channel video output & HDMI RX2.0, MIPI-CSI, DVP video input, 8K multi channel video output & 4K video input, Can achieve multi screen with different content. Integrated with 48MP ISP with HDR & 3DNR, support MIPI-CSI double camera input.
● Various display interfaces, support for multiple hard drives, gigabit ethernet, WiFi6, 5G/4G extension；
● Support android12.0, linux, debain, ubuntu etc.
● Comprehensive development documents；SDK, technical datasheet, tools.
Applications of SOM Core Board
Edge computing box, AGV, ITX PC, NVR, Interative Kiosk, AR/VR, Clound Service, Internet Media Player. click here
