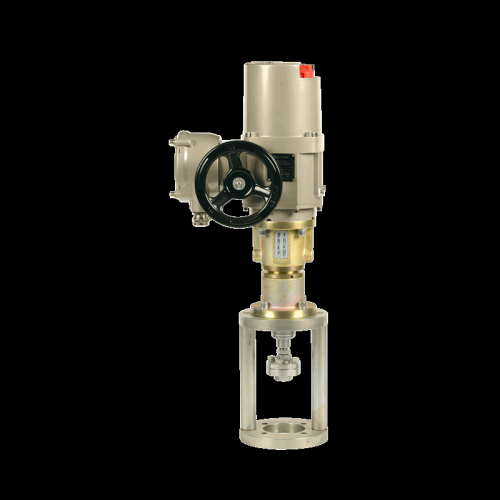

Linear Electric Valve Actuators

Linear electric actuator mainly outputs thrust and displacement, mostly used for regulating valve. When the thrust is small or the space is limited, the integrated linear electric actuator can be selected preferentially; When the thrust is large, the type of multi-turn electric actuator+thrust unit can be selected. The output part of the linear electric actuator is generally connected with HALF st

Product Description

Linear electric actuators are the epitome of precision and reliability, and they're ready to revolutionize your valve control systems. Designed to excel in thrust and displacement applications, these actuators are the ultimate choice when pinpoint accuracy is non-negotiable.


Versatile Selection, Tailored Performance

When your application demands substantial thrust and a stroke length of 25-115mm, our multi-turn electric actuators with thrust units step up to the plate. These powerhouses can provide thrusts ranging from 3000N to 118000N, ensuring that even the most demanding tasks are accomplished with ease.

For situations where space is at a premium, our compact linear electric actuators take center stage. Compact and efficient, these actuators are designed to deliver top-notch performance without compromising on precious installation space. They perfectly complement your needs when space is limited.



Absolute Encoder

Precision without the hassle of commissioning - that's what you get with our linear electric actuators. Equipped with absolute encoders, these actuators ensure that valve positioning is as accurate as it gets. You don't need to open the cover for commissioning, saving you valuable time and effort. This feature streamlines setup, enhances operational efficiency, and minimizes downtime.


HALF Structure

They employ a HALF structure for valve connection, a design that's both convenient and exceptionally adaptable. This innovative approach simplifies installation, ensuring a seamless connection that guarantees reliable valve operation.


IP67

With an IP67 rating (with an optional IP68 upgrade), they fearlessly face the elements. Whether it's moisture, dust, or other extreme conditions, rest assured that these actuators will consistently perform at their best.


Seamless Connectivity For The Future

They support a range of connectivity options, including bus systems, Bluetooth, and Internet of Things (IoT) integration. With these options, you gain real-time operating status of the control valve, boosting efficiency and minimizing downtime.

Our linear electric valve actuators redefine precision and reliability in valve control. Whether you're working in a confined space or tackling a demanding application, these actuators deliver the pinpoint accuracy and unwavering reliability you need. When it's time to take control of your valves with confidence, choose our linear electric actuators for a seamless and efficient operation. Your precision is our promise.



Technical Data

Model

Thrust

N

Speed

mm/S

Max. stroke

mm

Rated power

W

Rated current(A)

@3PH AC380V 50Hz

Weight

Kg

HKL30.2 3000 0.16 25 75 0.22 17.5
HKL50.2 5000 0.16 40 75 0.22 17.5
HKL80.2 8000 0.16 60 90 0.26 21.5
HKL100.2 10000 0.16 60 90 0.26 21.5
HKL130.2 13000 0.16 100 120 0.32 23
HKL150.2 15000 0.16 100 120 0.32 23
Other parameters to be set according to the real working conditions
